670.6566-137

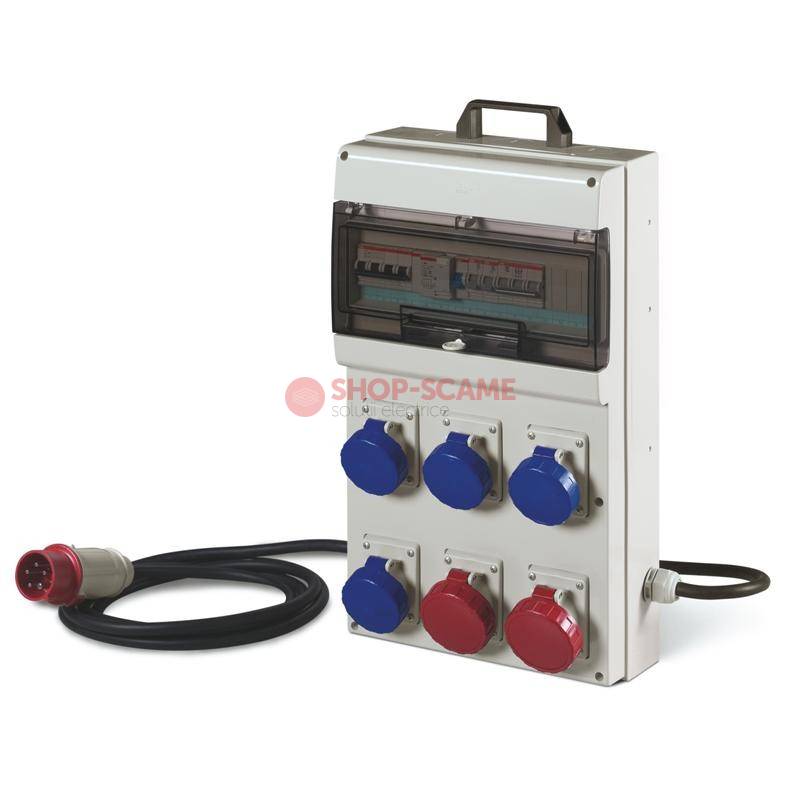

PORTABLE DISTRIBUTION ASSEMBLY DOMINO SCAME 670.6566-137

Cod EAN: 8001636052359

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2624.37 Lei / 1

Pret cu TVA: 3175.49 Lei / 1

Inainte »»

Master data
1NR Minimum order: 7.594KG Net Weight: 8001636052359 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 6 No. of available outlets: 3 No. of sockets 2P+E 16A: 3 No. of sockets 3P+E 16A: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 3 No. MCB 1P 16A: 1 No. MCB 3P 16A:

Packaging
Carton Description: 1 Quantity: 8001636917801 EAN code: 8.59 KG Gross weight: 52338 CCM Volume: 440X610X195 (MM) Dimensions:

Note:

Plug IEC309 32A 3P+N+E

4m rubber cable H07RN-F

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 52.37 KB
