670.6566-119

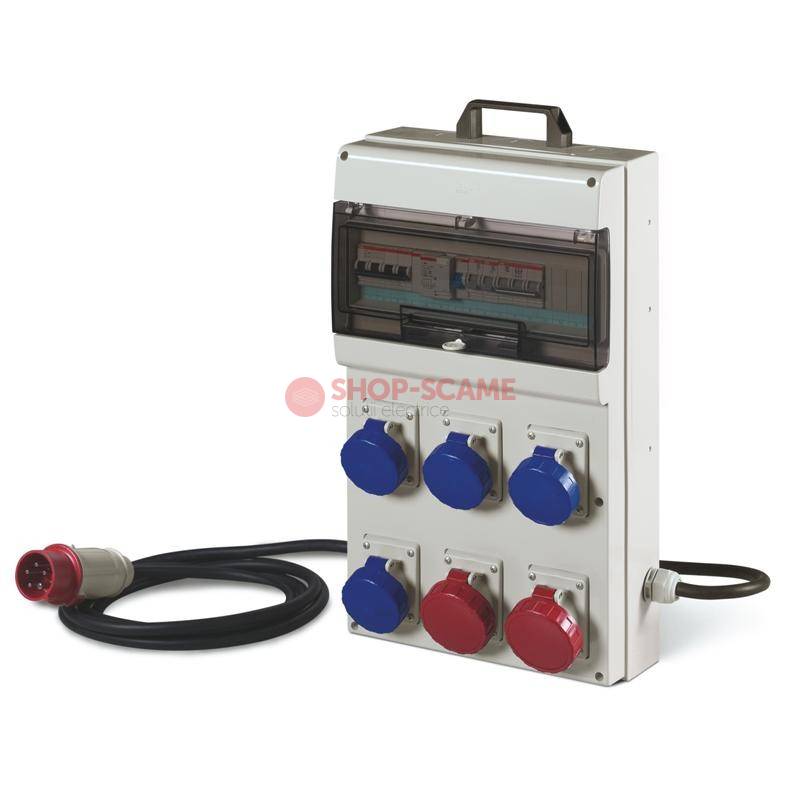

PORTABLE DISTRIBUTION ASSEMBLY DOMINO SCAME 670.6566-119

Cod EAN: 8001636052328

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2380.89 Lei / 1

Pret cu TVA: 2880.88 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 6.16KG Net Weight: 8001636052328 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 6 No. of available outlets: 6 No. of sockets 2P+E 16A: MCB 2P 16A In disp. ing/tipo apparecchio: RCD 2P 25A 0,03A In disp. ing/tipo apparecchio: 3 KW Max power: 6 No. switch disconnector 1P 16A:

Packaging
Carton Description: 1 Quantity: 8001636917832 EAN code: 7.156 KG Gross weight: 52338 CCM Volume: 440X610X195 (MM) Dimensions:

Note:

4m rubber cable H07RN-F

Plug IEC309 16A 2P+E

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 54.08 KB
