670.6546-03

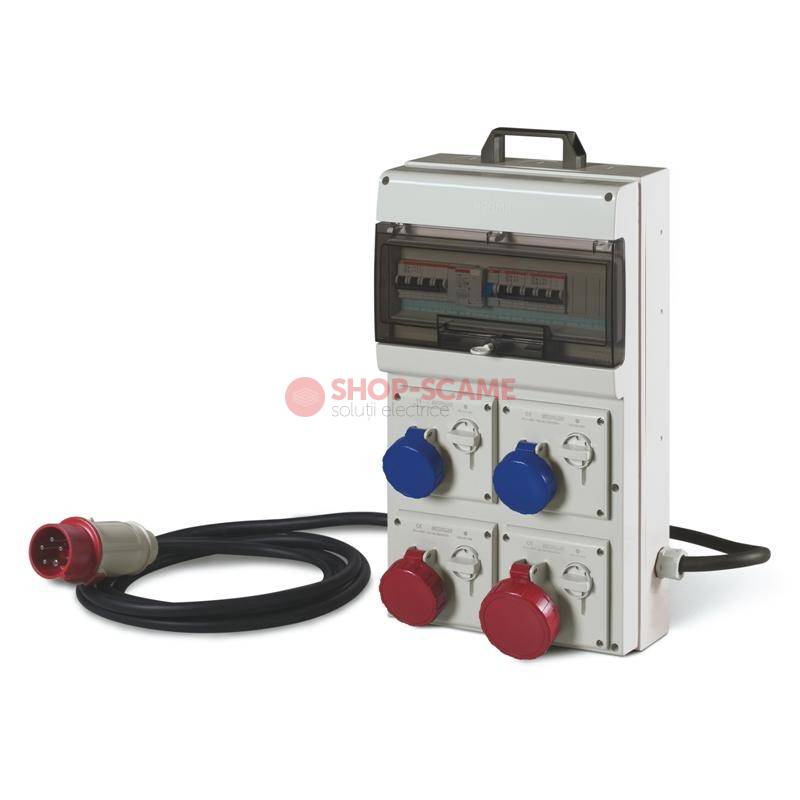

PORTABLE DISTRIBUTION ASSEMBLY DOMINO SCAME 670.6546-03

Cod EAN: 8001636052281

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2741.09 Lei / 1

Pret cu TVA: 3316.72 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 6.921KG Net Weight: 8001636052281 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 4 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 16A: MCB 4P 16A In disp. ing/tipo apparecchio: RCD 4P 25A 0,03A In disp. ing/tipo apparecchio: 9 KW Max power:

Packaging
Carton Description: 1 Quantity: 8001636917870 EAN code: 7.917 KG Gross weight: 52338 CCM Volume: 440X610X195 (MM) Dimensions:

Note:

Plug IEC309 16A 3P+N+E

4m rubber cable H07RN-F

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 48.02 KB
