» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

630.4506-447

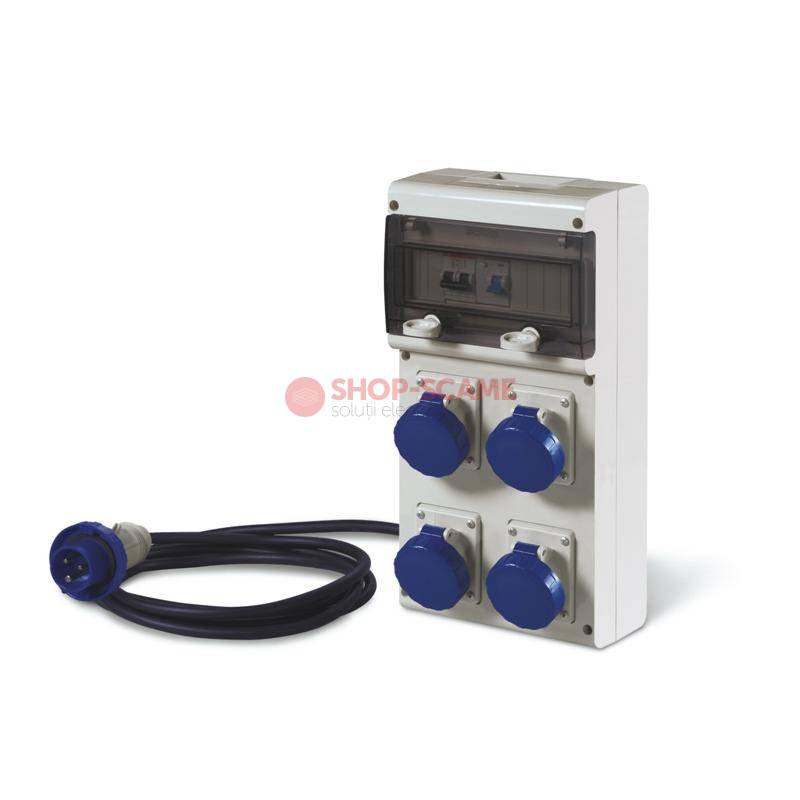

PORTABLE DISTRIBUTION ASSEMBLY BLOCK4 SCAME 630.4506-447

Cod EAN: 8001636082233

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 1828.10 Lei / 1

Pret cu TVA: 2212.00 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 4.272KG Net Weight: 8001636082233 EAN code: 85371098 INTRASTAT code:

TechData
BLOCK Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 4 No. of available outlets: 3 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: MCB 3P 16A In disp. ing/tipo apparecchio: 9 KW Max power:

Packaging
Carton Description: 1 Quantity: 8001636871554 EAN code: 4.829 KG Gross weight: 25501.875 CCM Volume: 335X435X175 (MM) Dimensions:

Note:

Plug IEC309 16A 3P+E

4m rubber cable H07RN-F

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 42.6 KB
