630.4006-418

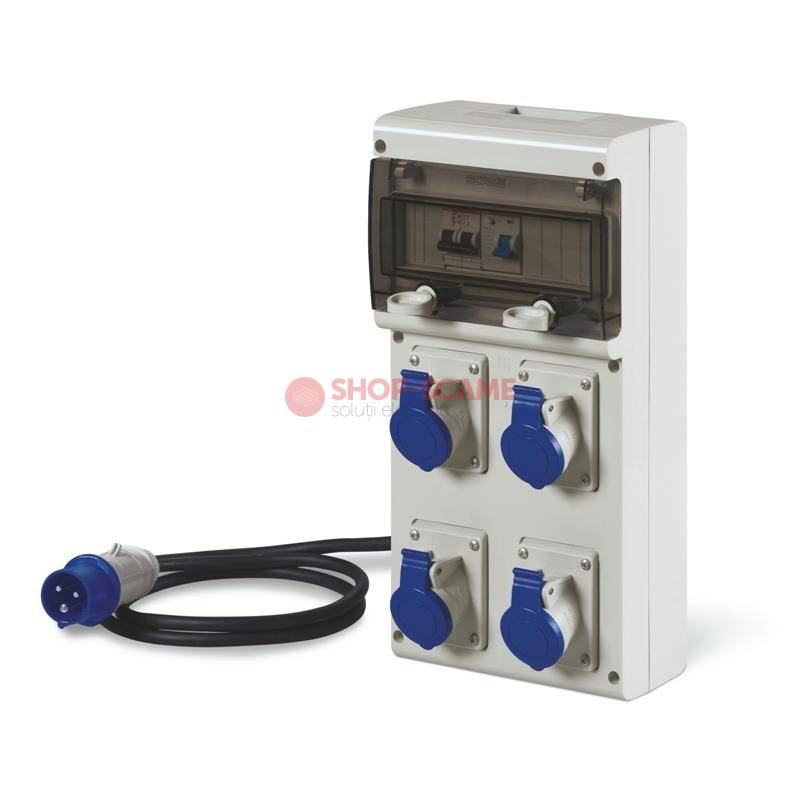

PORTABLE DISTRIBUTION ASSEMBLY BLOCK4 SCAME 630.4006-418
Cod EAN: 8001636068961
Marca: Scame
Cantitate minima: 1
Pret fara TVA: 2485.26 Lei / 1
Pret cu TVA: 3007.16 Lei / 1
PORTABLE DISTRIBUTION ASSEMBLY BLOCK4 SCAME 630.4006-418
1NR
Minimum order:
4.343KG
Net Weight:
8001636068961
EAN code:
85371098
INTRASTAT code:
Commercial series:
DISTRIBUTION ASSEMBLY
Synthetical description:
IP44
Protection degree:
Plug
Inlet supply unit:
4
No. of available outlets:
2
No. p.m.socket 2P+E 10A CH std:
1
No. of sockets 2P+E 16A:
1
No. of sockets 3P+N+E 16A:
RCD 4P 40A 0,03A
In disp. ing/tipo apparecchio:
16 KW
Max power:
2
No. MCB 1P 10A:
1
No. MCB 1P 16A:
1
No. MCB 3P 16A:
Carton
Description:
1
Quantity:
8001636895017
EAN code:
5.9 KG
Gross weight:
25501.875 CCM
Volume:
335X435X175 (MM)
Dimensions:
EN 61439-3 (2012-04)
View certificate
[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)
