Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

630.3506-381

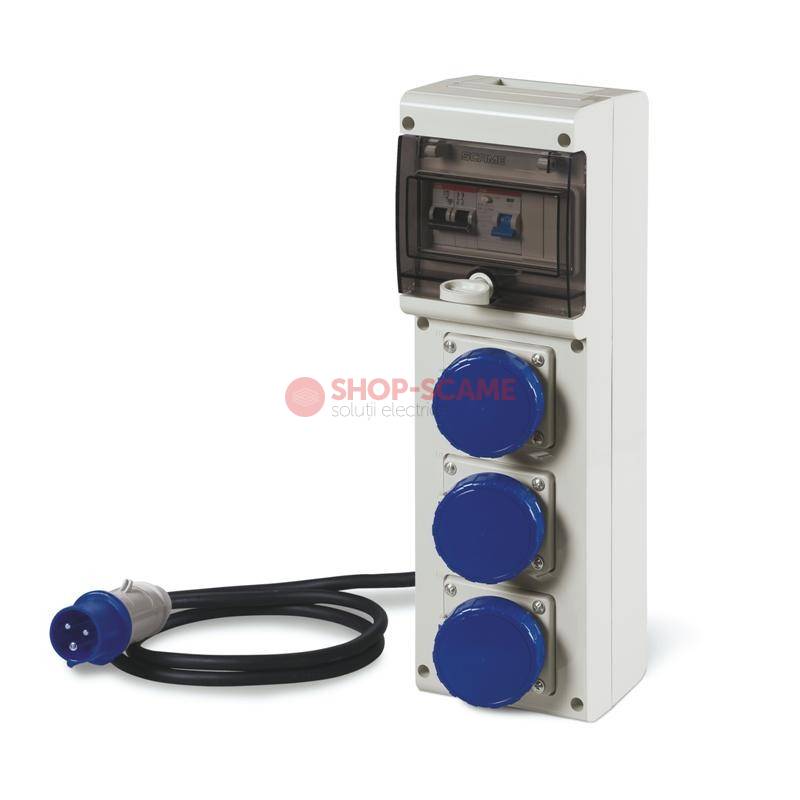

PORTABLE DISTRIBUTION ASSEMBLY BLOCK3 SCAME 630.3506-381

Cod EAN: 8001636061122

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2673.62 Lei / 1

Pret cu TVA: 3235.08 Lei / 1

Inainte »»

Master data
1NR Minimum order: 2.91KG Net Weight: 8001636061122 EAN code: 85371098 INTRASTAT code:

TechData
BLOCK Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Plug Inlet supply unit: 3 No. of available outlets: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+N+E 16A: RCBO 4P 16A 0,03A In disp. ing/tipo apparecchio: 9 KW Max power:

Packaging
Carton Description: 1 Quantity: 8001636907376 EAN code: 3.34 KG Gross weight: 20527.5 CCM Volume: 255X460X175 (MM) Dimensions:

Note:

Plug IEC309 16A 3P+N+E

1,5m rubber cable H07RN-F

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 40.33 KB
