» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

235.32035

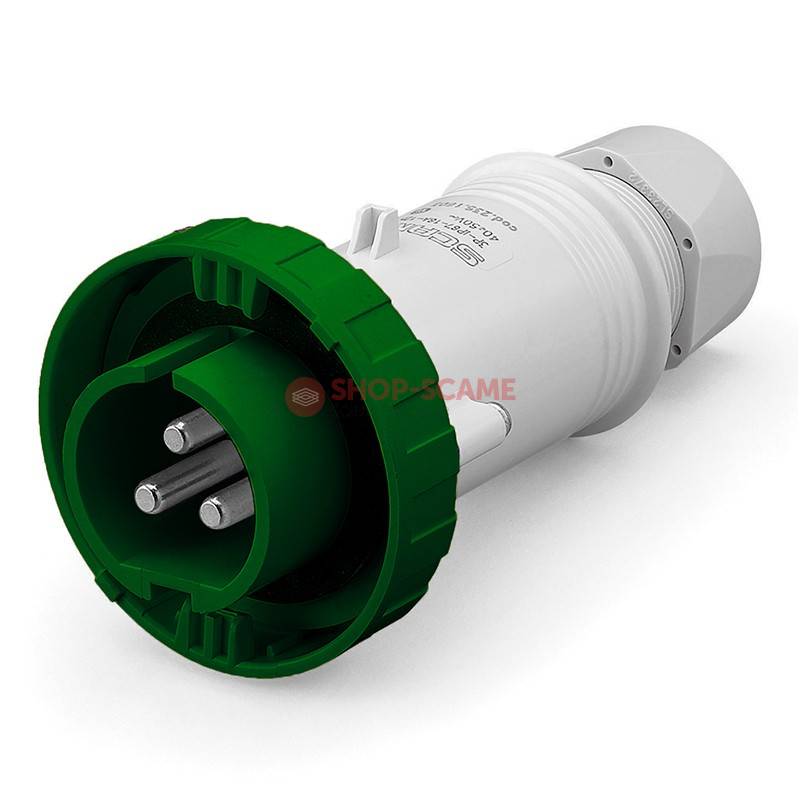

PLUG 3P IP66/IP67 32A 11h 20-25V 40-50V SCAME 235.32035

Cod EAN: 8001636090498

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 79.37 Lei / 1

Pret cu TVA: 96.04 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.204KG Net Weight: 8001636090498 EAN code: 85366990 INTRASTAT code:

TechData
IEC309 Series Commercial series: PLUG Synthetical description: 32A Rated current: 3P Poles: 11h Hour position: 20-25V Rated voltage: 40-50V Rated voltage: >400-500Hz Working frequency: GREEN Colour: IP66/IP67 Protection degree: STRAIGHT Types of available outlets: Screw terminals Terminals:

Packaging
Carton Description: 100 Quantity: 8001636505800 EAN code: 22.7 KG Gross weight: 84072 CCM Volume: 240X565X620 (MM) Dimensions: Box Description: 10 Quantity: 8001636505817 EAN code: 2.27 KG Gross weight: 7128 CCM Volume: 220X270X120 (MM) Dimensions:

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
