» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

218.125336

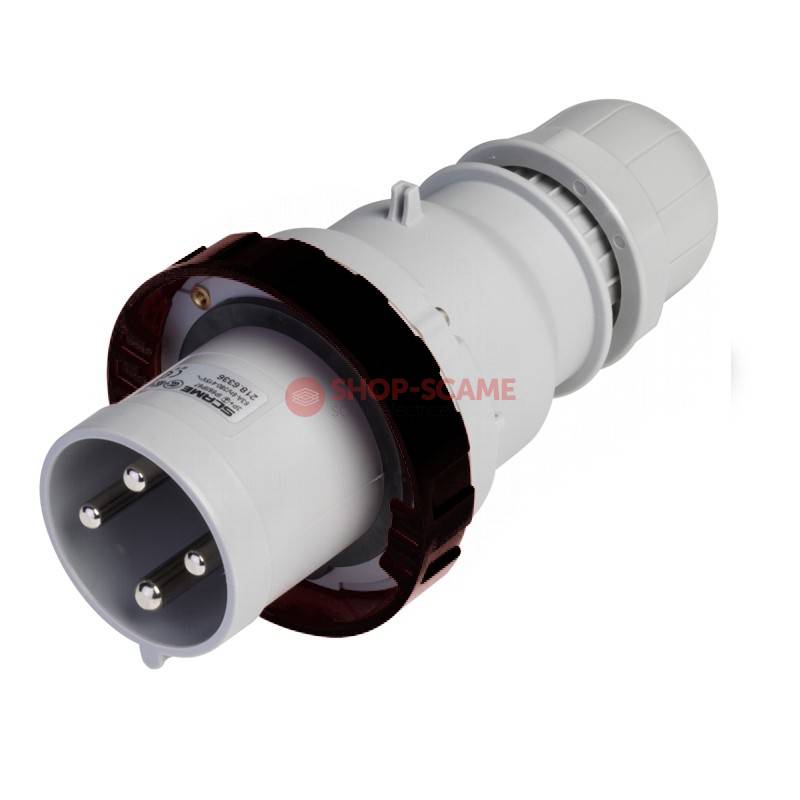

PLUG 2P+E IP66/IP67 16A 125A 7h 480-500V SCAME 218.125336

Cod EAN: 8001636273358

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 450.77 Lei / 1

Pret cu TVA: 545.43 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 1.093KG Net Weight: 8001636273358 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: PLUG Synthetical description: 125A Rated current: 2P+E Poles: 7h Hour position: 480-500V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: BLACK Colour: IP66/IP67/IP69 Protection degree: STRAIGHT Types of available outlets: Mantle terminals Terminals: CABLE GLAND Cable outlet:

Packaging
Carton Description: 8 Quantity: 8001636723167 EAN code: 11.616 KG Gross weight: 87100 CCM Volume: 400X650X335 (MM) Dimensions: Box Description: 1 Quantity: EAN code: 1.452 KG Gross weight: 7497 CCM Volume: 140X315X170 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
