659.DA5241-04

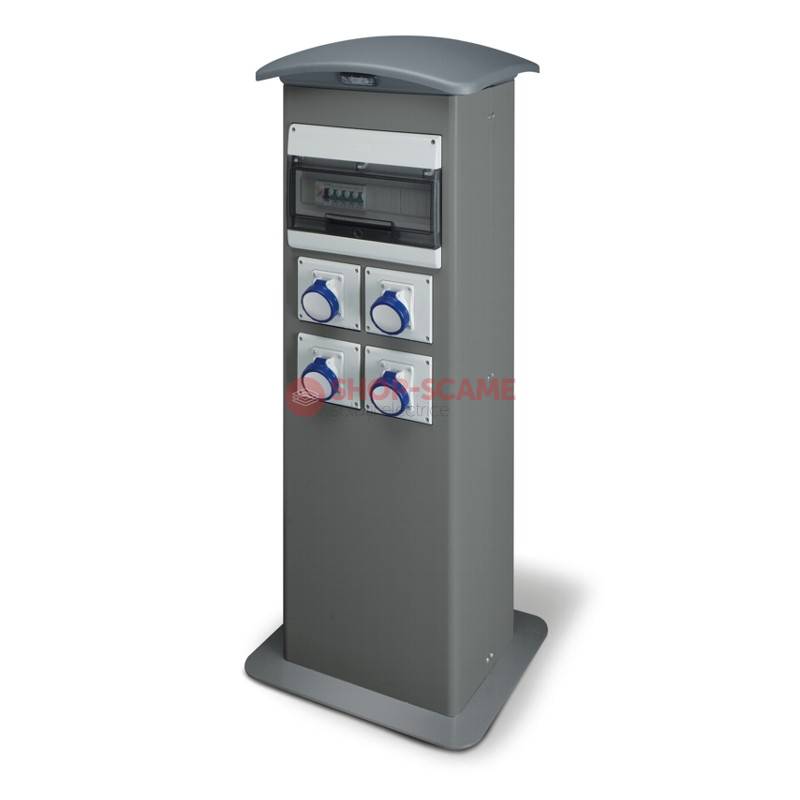

PILLAR DOMINO-OMNIA METAL IP66 12A 400V SCAME 659.DA5241-04

Cod EAN: 8001636280073

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 12036.50 Lei / 1

Pret cu TVA: 14564.17 Lei / 1

«« Inapoi

PILLAR DOMINO-OMNIA METAL IP66 12A 400V SCAME 659.DA5241-04

Master data
1NR Minimum order: 0KG Net Weight: 8001636280073 EAN code: 85371098 INTRASTAT code:

TechData
KIOSK Series Commercial series: PILLAR DOMINO-OMNIA METAL Synthetical description: IP66 Protection degree: Supply by terminal block Inlet supply unit: 4 No. of available outlets: 3 No. of sockets 2P+E 16A: 1 No. of sockets 3P+N+E 16A: Not applicable In disp. ing/tipo apparecchio: 1 No. MCB 4P 6A: 3 No. RCBO 2P 6A 0,03A: 1 No. RCD 4P 25A 0,03A:

Packaging
Bag Description: 1 Quantity: 8001636731216 EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Upon request, versions can be built with the water kit (contact the CIT - Technical Information Centre)

Approvals and Certifications

View certificate

Standards and Laws

IEC/TS 61439-7 (2014-02)

[International Standard] Low-voltage switchgear and controlgear assemblies - Part 7: Assemblies for specific applications such as: marinas, camping sites, market squares, electric vehicles cherging stations.

Annexed

	Wiring diagram 54.59 KB
	Technical drawing [DWG] 758.57 KB
	Technical drawing [PDF] 309.54 KB
	Technical drawing [STP] 151.38 KB
