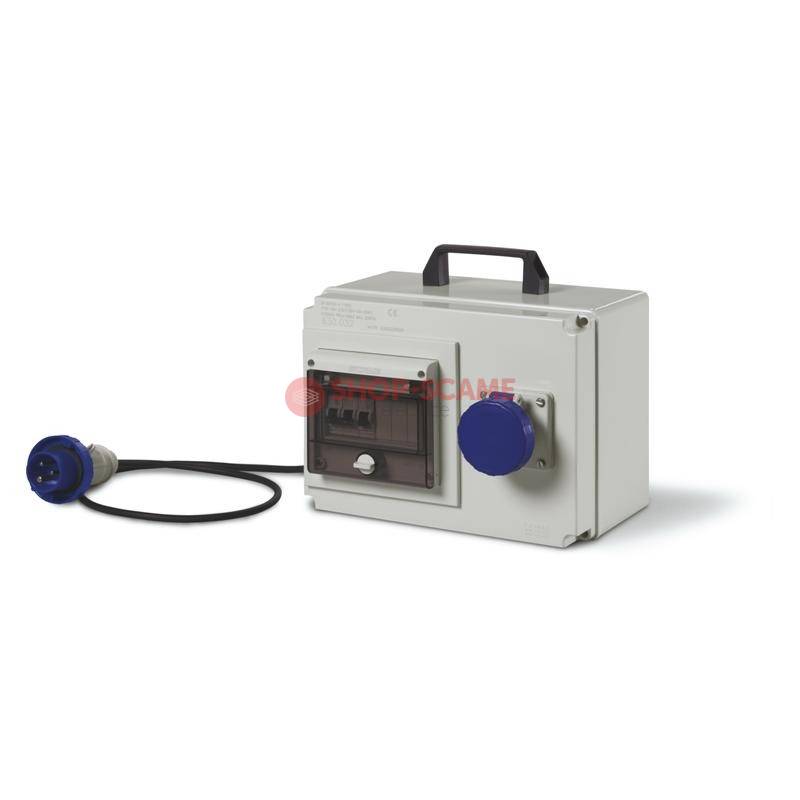

PANEL BOARD IP55 WITH TRANSFORMER SCAME 630.031
Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

630.031

PANEL BOARD IP55 WITH TRANSFORMER SCAME 630.031

Cod EAN: 8001636088204

Marca: Scame

Cantitate minima: 1





Pret fara TVA: 3997.34 Lei / 1

Pret cu TVA: 4836.78 Lei / 1

»  Aveti intrebari ?

PANEL BOARD IP55 WITH TRANSFORMER SCAME 630.031

 Master data
  • 1NR
  • 10.375KG
  • 8001636088204
  • 85371098

 TechData
  • DISTRIBUTION ASSEMBLY (ACS)
  • IP55
  • Plug
  • 1
  • 1
  • MCB 2P 6A
  • Trafo 1000 VA (230/220V)
  • 1

 Packaging
  • Carton
  • 1
  • 8001636502052
  • 10.86 KG
  • 28533.875 CCM
  • 265X365X295 (MM)

  Note:

MCB with operating time complying with D curve diagram.

Isolating transformer: electric shielding protection (230/230V).

Rubber electric cable 2x1,5 mm² H07RN-F (length 1,5 m).

Provided with housing mod. SCABOX complete with lifting handle.

Plug IEC309 16A 2P+E

Note: the equipment must be kept outside narrow conducting spaces.


 Approvals and Certifications

 Standards and Laws

EN 61439-4 (2013-03)

View certificate
[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)
