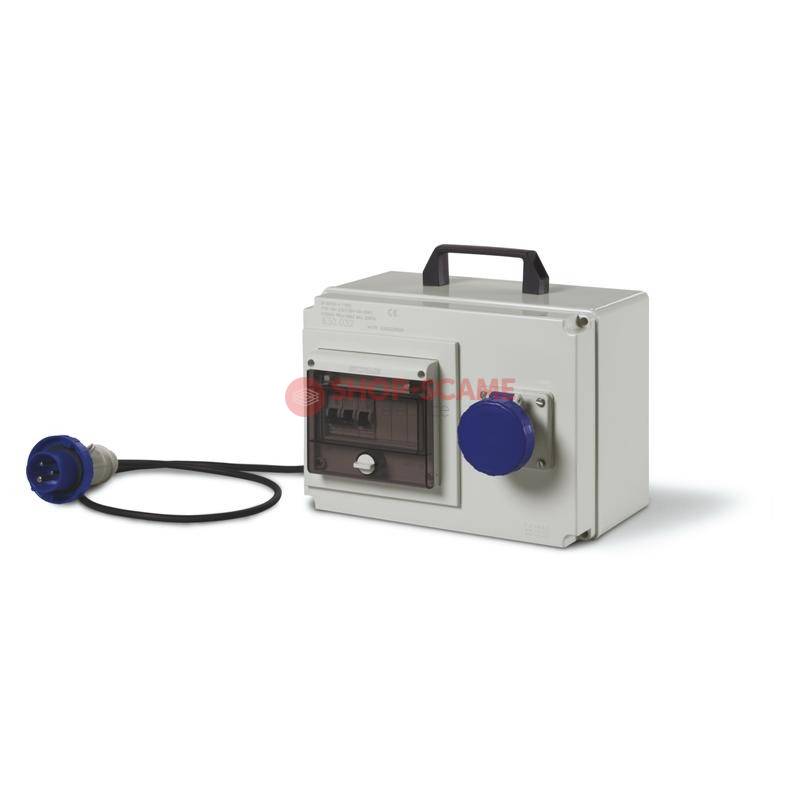

PANEL BOARD IP55 WITH TRANSFORMER SCAME 630.022

MCB with operating time complying with D curve diagram.

Safety transformer: SELV protection (230/24V and 230/48V).

Rubber electric cable 2x1,5 mm² H07RN-F (length 1,5 m).

Note: the equipment must be kept outside narrow conducting spaces.

Provided with housing mod. SCABOX complete with lifting handle.

TRANSFORMER Series ACS IP55 panel board provided with both safety and insulated transformer The power supply system is provided with a safety or fully insulated transformer that allows the use of electric equipment even in confined conductive spaces, confined spaces generally delimited by metal or conductive surfaces. Where it is possible for human contact to occur a safety or fully insulated transformer must be used. Examples of confined conductive spaces within the construction / building yard are; metal tanks, metal pipe systems, damp underground channels, excavations and scaffolding.

Plug IEC309 16A 2P+E
