817.1606C

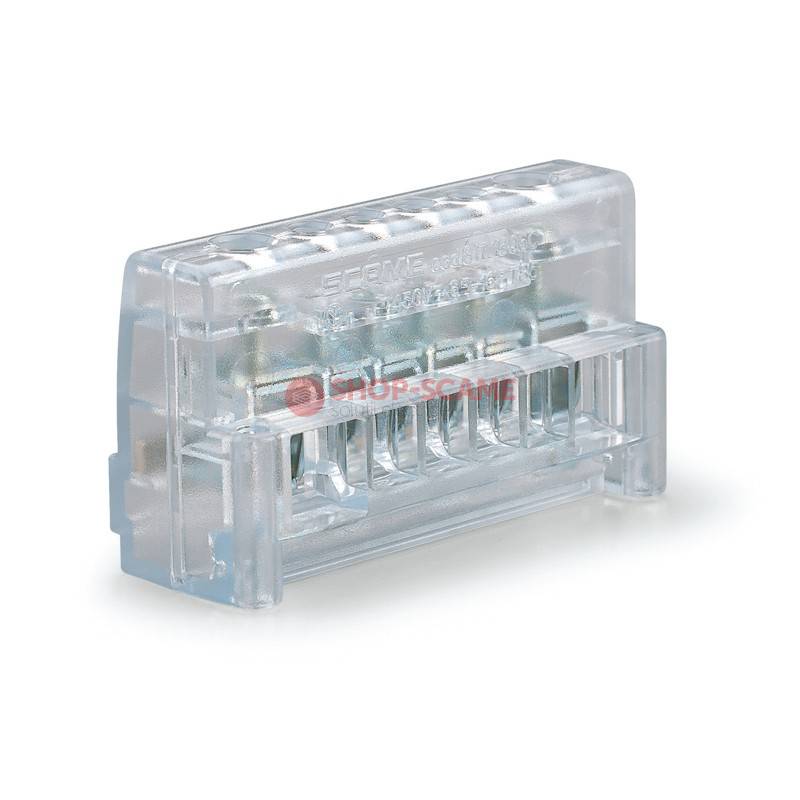

MULTI-WAY WIRE CONNECTOR 4x6mmq 2x16mmq SCAME 817.1606C

Cod EAN: 8001636086743

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 25.46 Lei / 1

Pret cu TVA: 30.81 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.052KG Net Weight: 8001636086743 EAN code: 85369010 INTRASTAT code:

TechData
CONNECTO Series Commercial series: MULTI-WAY WIRE CONNECTOR Synthetical description: 6 WAYS Number of ways: 4x6mm² Connecting capacity: 2x16mm² Connecting capacity: 450V Rated voltage: 66x38x24mm Dimensions:

Packaging
Box Description: 10 Quantity: 8001636500300 EAN code: 0.58 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Carton Description: 260 Quantity: 8001636501819 EAN code: 15.08 KG Gross weight: 31416 CCM Volume: 340X385X240 (MM) Dimensions:

Note:

Protection degree: IP20

Max. service temperature - continuous duty: 85°C.

Rated voltage 450V~.

Captive screws.

Cage clamp connectors.

Derivations

Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.

Engineering plastic casing

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60998-2-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 2-1: Particular requirements for connecting devices as separate entities with screw-type clamping units
	EN 60998-1 (2004) View certificate
[European Standard] Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements
