» Cofrete si tablouri de sigurante IP40/IP66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

633.2025

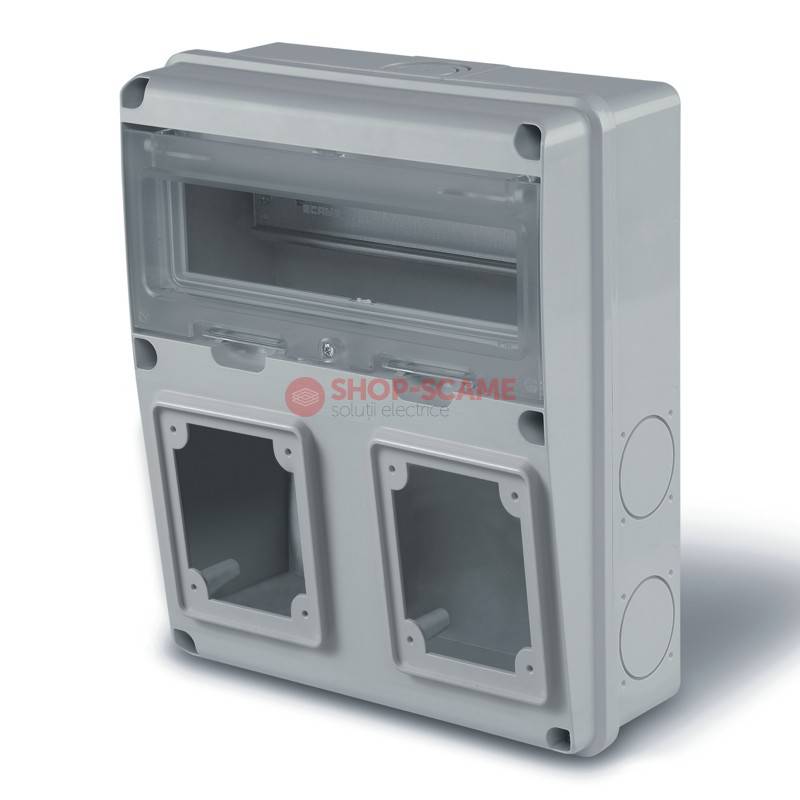

MODULAR ENCLOSURE 11 DIN 2x63A SCAME 633.2025

Cod EAN: 8001636303079

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 102.10 Lei / 1

Pret cu TVA: 123.54 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.865KG Net Weight: 8001636303079 EAN code: 85381000 INTRASTAT code:

TechData
ENERBOX Series Commercial series: EMPTY ENCLOSURE Synthetical description: SURFACE MOUNTING Mounting version: IP55 Protection degree: 285x235x107mm Dimensions: 4 DOMO + 2x63A Notes: 15W Dissipable power:

Packaging
Carton Description: 6 Quantity: 8001636749075 EAN code: 6.162 KG Gross weight: 61600.5 CCM Volume: 405X585X260 (MM) Dimensions:

Note:

Side knockouts (DOMO 50x60mm): 4 closed

Power dissipation calculated in conformity with CEI 23-49 italian standards

Side entrances
When fixing the DOMO Series side sockets (50x60 mm), use the special accessory (art. 570.2001)

Approvals and Certifications

View certificate

Standards and Laws

EN 60670-1 (2005)

[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations. General requirements

Annexed
