» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

661.5160-111

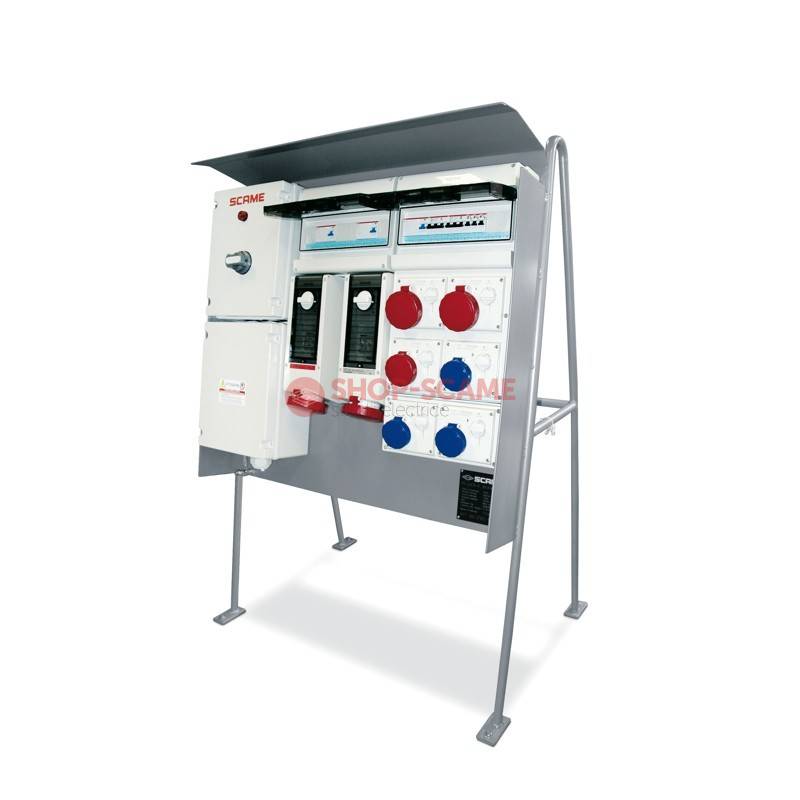

MEGA DISTRIBUTION ASSEMBLY SCAME 661.5160-111

Cod EAN: 8001636190747

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 34266.30 Lei / 1

Pret cu TVA: 41462.22 Lei / 1

Inainte »»

Master data
1NR Minimum order: 68.2KG Net Weight: 8001636190747 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 8 No. of available outlets: 3 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: 2 No. of sockets 3P+E 32A: 1 No. of sockets 3P+E 63A: 1 No. of sockets 3P+N+E 63A: MCB 4P 160A In disp. ing/tipo apparecchio: 90 KW Max power: 3 No. MCB 1P 16A: 1 No. MCB 3P 16A: 1 No. MCB 3P 32A:

Packaging
Bag Description: 1 Quantity: 8001636645902 EAN code: 88.2 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 89.49 KB
