» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

661.0400-083

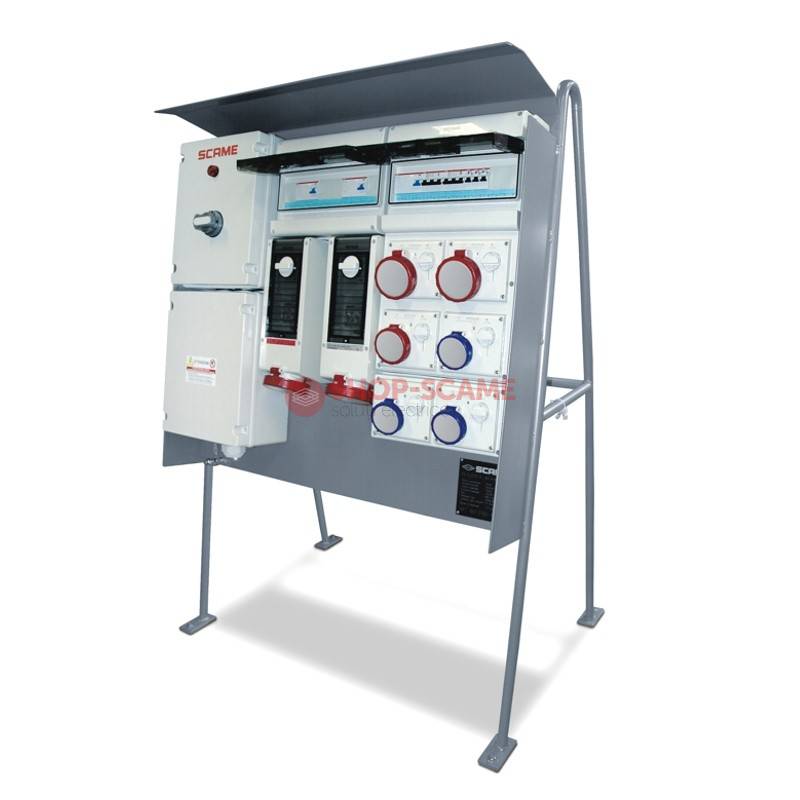

MEGA DISTRIBUTION ASSEMBLY SCAME 661.0400-083

Cod EAN: 8001636135588

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 66647.00 Lei / 1

Pret cu TVA: 80642.87 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 168KG Net Weight: 8001636135588 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 8 No. of available outlets: 4 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 32A: 1 No. of sockets 3P+E 63A: 1 No. outlet w/ switch 3P+N 125A: Disconnecting switch 4P 400A In disp. ing/tipo apparecchio: 150 KW Max power: 3 No. MCB 1P 16A: 2 No. MCB 3P 32A: 1 No. MCB 3P 63A:

Packaging
Case Description: 1 Quantity: 8001636562346 EAN code: 267 KG Gross weight: 4.053 M3 Volume: 1102X2010X1830 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 68.3 KB
