» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

661.0400-009

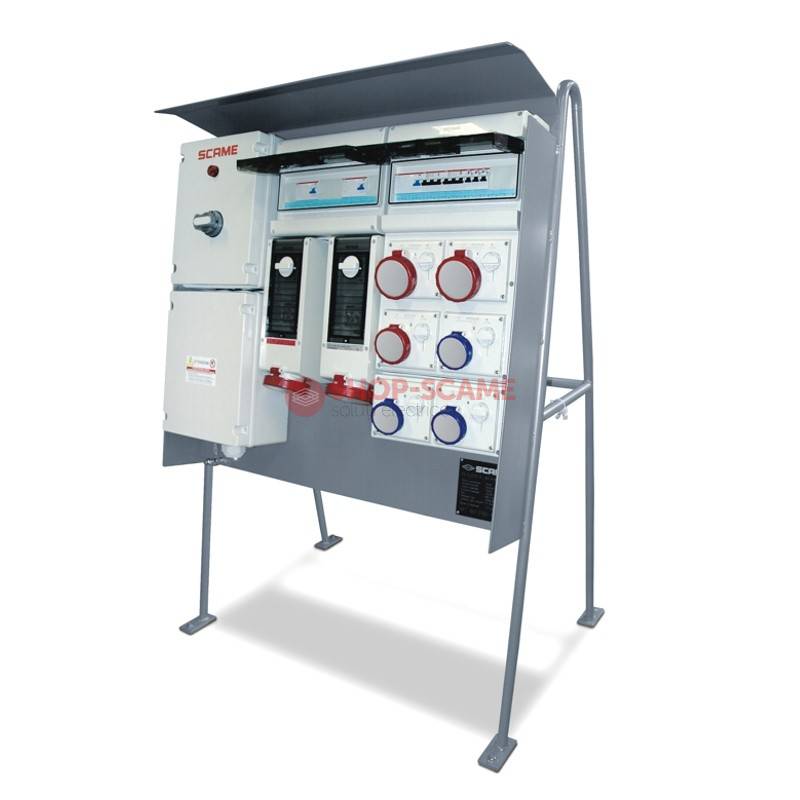

MEGA DISTRIBUTION ASSEMBLY SCAME 661.0400-009

Cod EAN: 8001636056418

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 87244.80 Lei / 1

Pret cu TVA: 105566.21 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 218.5KG Net Weight: 8001636056418 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 9 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 16A: 2 No. of sockets 3P+N+E 32A: 1 No. of sockets 3P+N+E 63A: 1 No. outlet w/ switch 3P+N 63A: 1 No. outlet w/ switch 3P+N 125A: MCB 4P 250A In disp. ing/tipo apparecchio: 150 KW Max power:

Packaging
Case Description: 1 Quantity: 8001636911120 EAN code: 317.5 KG Gross weight: 4.053 M3 Volume: 1102X2010X1830 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 82.27 KB
