» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

661.0250-058

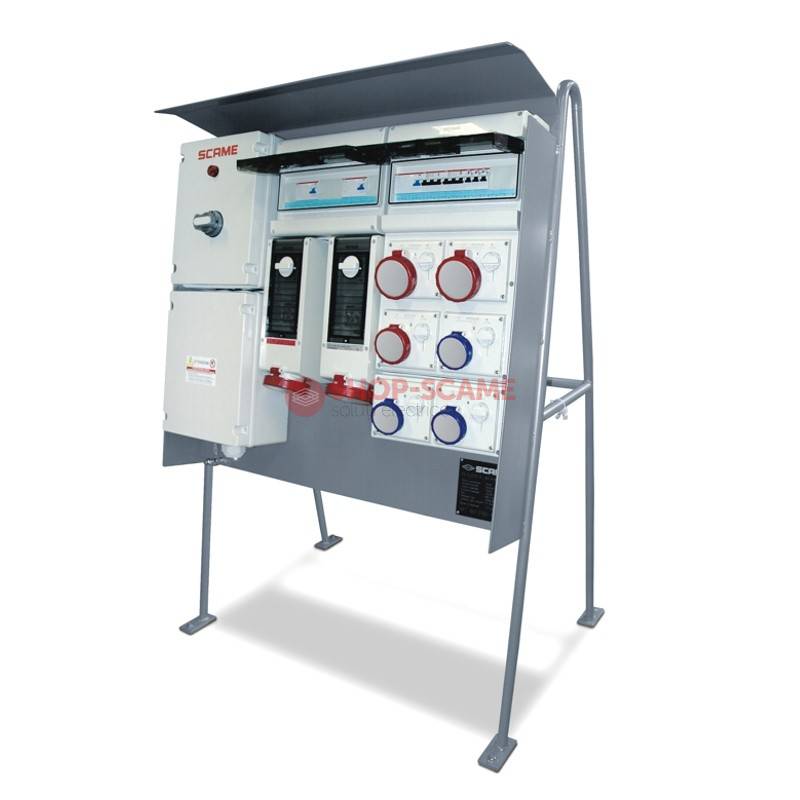

MEGA DISTRIBUTION ASSEMBLY SCAME 661.0250-058

Cod EAN: 8001636096049

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 81466.90 Lei / 1

Pret cu TVA: 98574.95 Lei / 1

Inainte »»

Master data
1NR Minimum order: 172.5KG Net Weight: 8001636096049 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 5 No. of available outlets: 1 No. outlet w/ switch 3P+N 16A: 2 No. outlet w/ switch 3P+N 32A: 1 No. outlet w/ switch 3P+N 50A: 1 No. outlet w/ switch 3P+N 160A: MCB 4P 250A In disp. ing/tipo apparecchio: 150 KW Max power:

Packaging
Case Description: 1 Quantity: 8001636512808 EAN code: 271.5 KG Gross weight: 4.053 M3 Volume: 1102X2010X1830 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 69.65 KB
