» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.EM6304

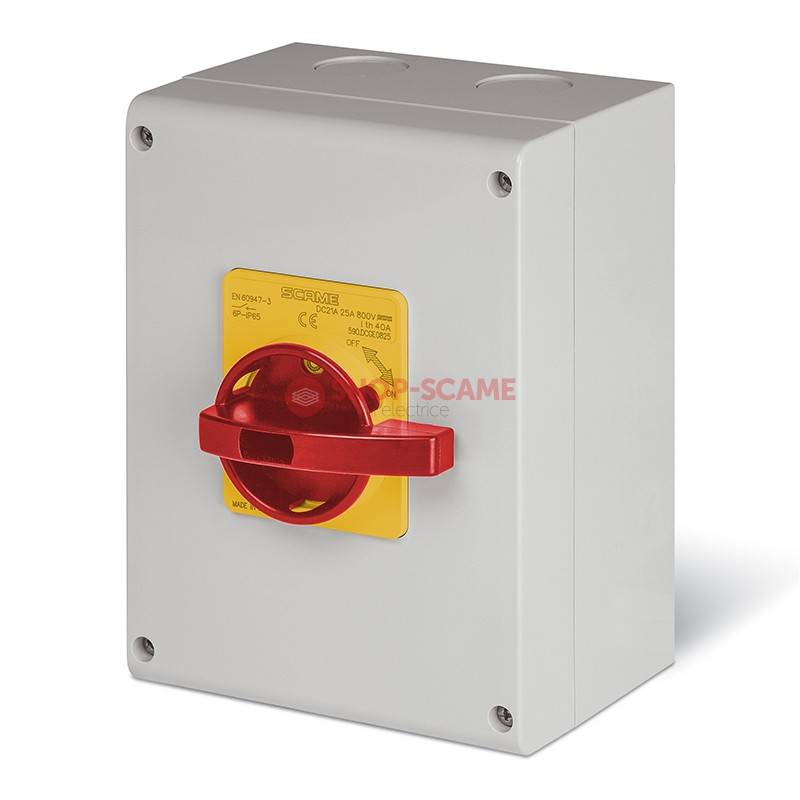

ISOLAT.63A 4P IP65 S.M.PLAST.BOX EMERG. SCAME 590.EM6304

Cod EAN: 8001636106724

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 339.64 Lei / 1

Pret cu TVA: 410.96 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.708KG Net Weight: 8001636106724 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: 63A Rated current: 4P Poles: Y2 Switch size: 155x210x107mm Dimensions:

Packaging
Carton Description: 5 Quantity: 8001636533025 EAN code: 4.195 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions: Box Description: 1 Quantity: 8001636527086 EAN code: 0.839 KG Gross weight: 5152.43 CCM Volume: 145X218X163 (MM) Dimensions:

Note:

Handle padlockable in OFF only (3 padlocks)

Equipped with door interlock

Break-through cable entries

Approvals and Certifications

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
