» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.ER2004

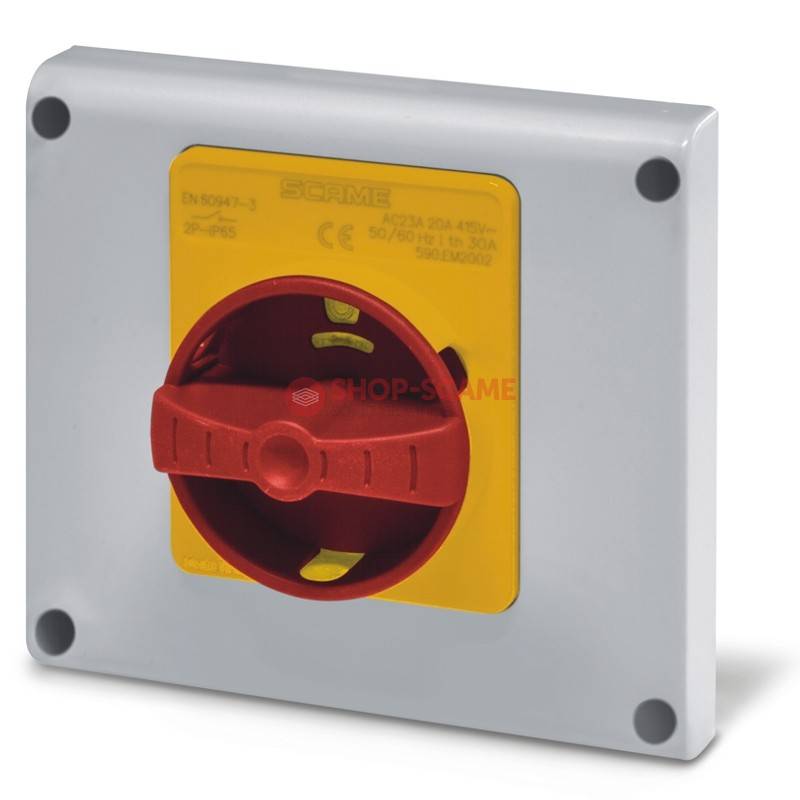

ISOLAT.20A 4P IP65 FLUSH MOUNT.EMERG.USE SCAME 590.ER2004

Cod EAN: 8001636189796

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 141.33 Lei / 1

Pret cu TVA: 171.01 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 0.268KG Net Weight: 8001636189796 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: 20A Rated current: 4P Poles: Y1 Switch size: 136x125mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636644448 EAN code: 4.452 KG Gross weight: 28800 CCM Volume: 300X400X240 (MM) Dimensions: Box Description: 1 Quantity: 8001636644431 EAN code: 0.371 KG Gross weight: 2041.536 CCM Volume: 128X147X108.5 (MM) Dimensions:

Note:

With panel mounting version (R) switch

Handle padlockable in OFF only (3 padlocks)

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
