» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.GE2013

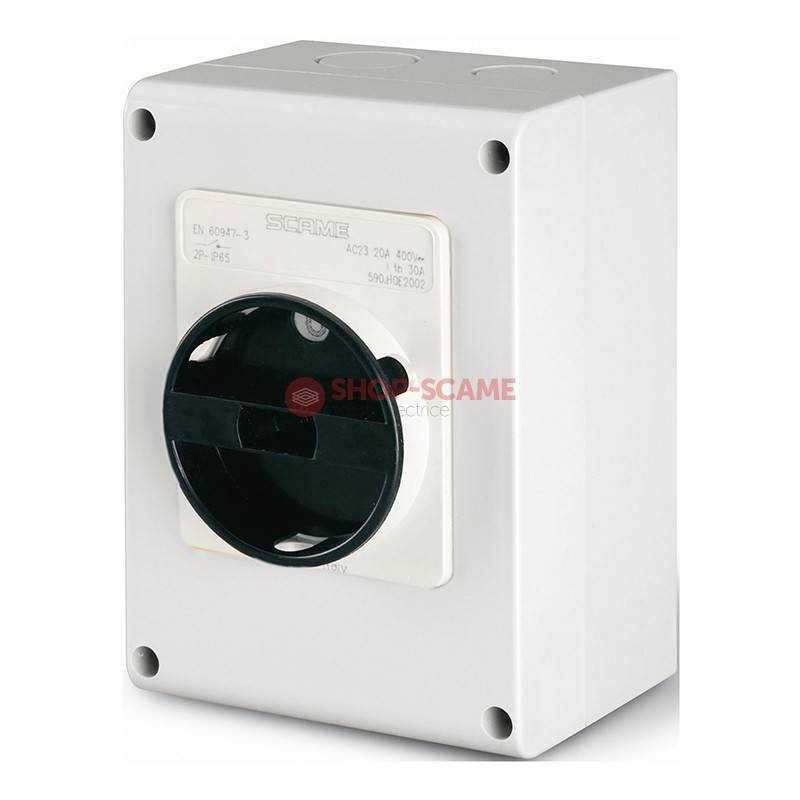

ISOLAT.20A 3P IP65 SURF.M.PLAST.BOX GEN SCAME 590.GE2013

Cod EAN: 8001636193649

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 137.82 Lei / 1

Pret cu TVA: 166.76 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.352KG Net Weight: 8001636193649 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: GENERAL Type: GREY/BLACK Colour: 20A Rated current: 3P Poles: Y1 Switch size: 105x150x82mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636650111 EAN code: 5.58 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions: Box Description: 1 Quantity: 8001636650104 EAN code: 0.465 KG Gross weight: 2121.168 CCM Volume: 107X168X118 (MM) Dimensions:

Note:

Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position

Equipped with door interlock

Break-through cable entries

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
