» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.EM2013

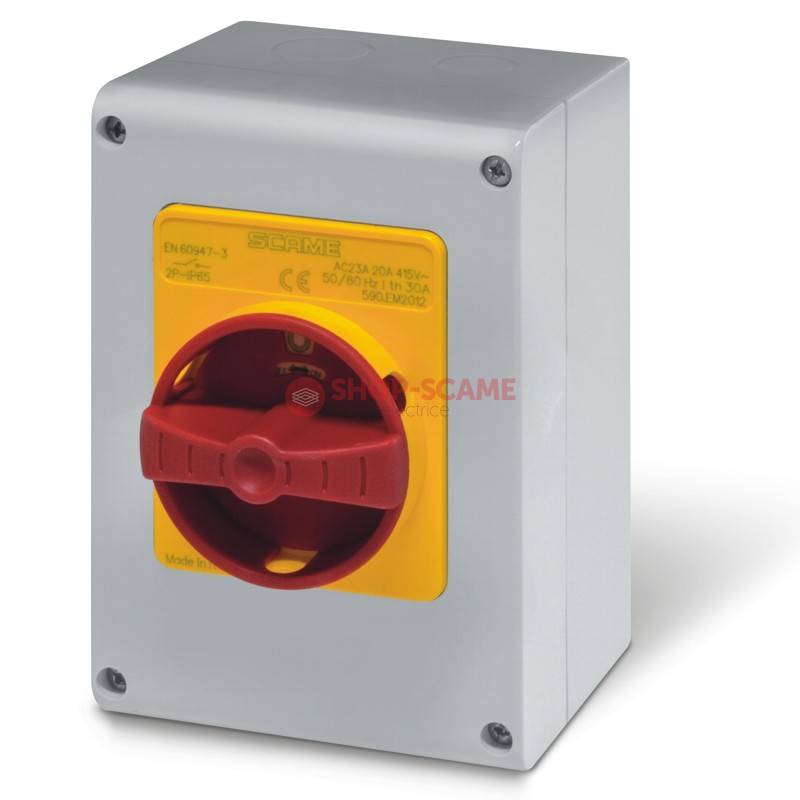

ISOLAT.20A 3P IP65 S.M.PLAST.BOX EMERG SCAME 590.EM2013

Cod EAN: 8001636193557

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 137.82 Lei / 1

Pret cu TVA: 166.76 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.364KG Net Weight: 8001636193557 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: 20A Rated current: 3P Poles: Y1 Switch size: 105x150x82mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636649931 EAN code: 5.748 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions: Box Description: 1 Quantity: 8001636649924 EAN code: 0.479 KG Gross weight: 2121.168 CCM Volume: 107X168X118 (MM) Dimensions:

Note:

Handle padlockable in OFF only (3 padlocks)

Equipped with door interlock

Break-through cable entries

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
