» Separatoare de sarcina - Butoane si accesorii IP65

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

590.GR2003

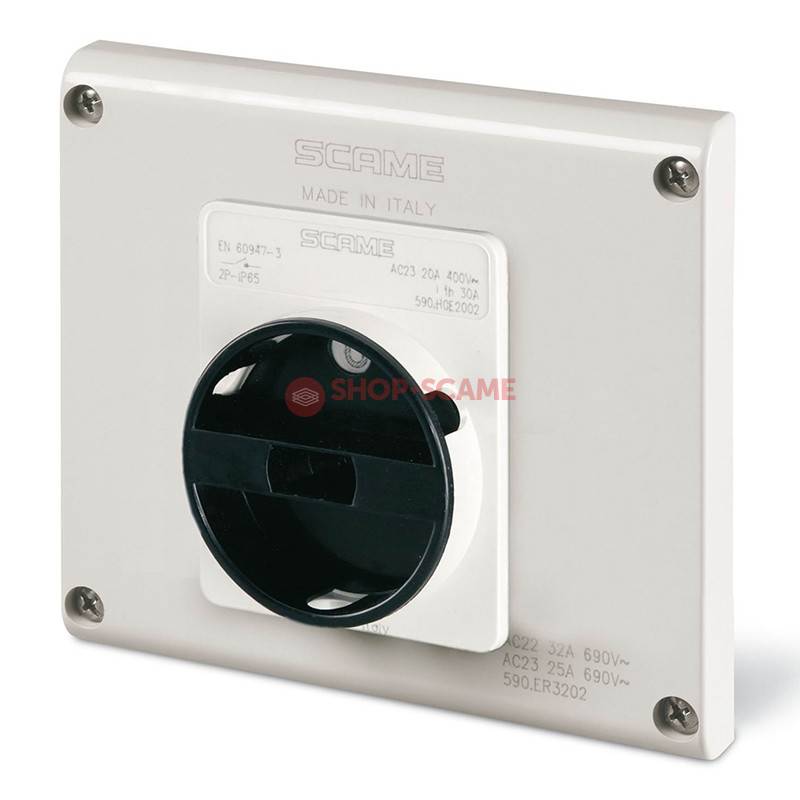

ISOLAT.20A 3P IP65 FLUSH MOUNT.GENER.USE SCAME 590.GR2003

Cod EAN: 8001636189819

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 129.89 Lei / 1

Pret cu TVA: 157.17 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.243KG Net Weight: 8001636189819 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: GENERAL Type: GREY/BLACK Colour: 20A Rated current: 3P Poles: Y1 Switch size: 136x125mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636644486 EAN code: 3.996 KG Gross weight: 28800 CCM Volume: 300X400X240 (MM) Dimensions: Box Description: 1 Quantity: 8001636644479 EAN code: 0.333 KG Gross weight: 2041.536 CCM Volume: 128X147X108.5 (MM) Dimensions:

Note:

With panel mounting version (R) switch

Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
