590.HEM2002

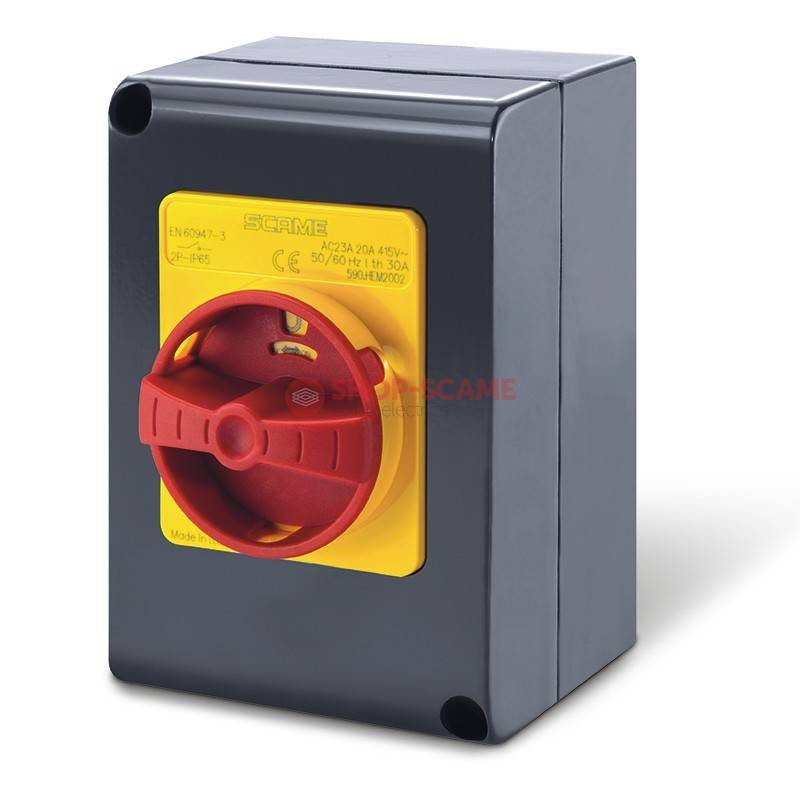

ISOL. 20A 2P IP65 SURF.M.ALUM.BOX EMERG SCAME 590.HEM2002

Cod EAN: 8001636189642

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 170.52 Lei / 1

Pret cu TVA: 206.33 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.865KG Net Weight: 8001636189642 EAN code: 85365080 INTRASTAT code:

TechData
ISOLATORS Series Commercial series: SWITCH DISCONNECTOR Synthetical description: IP65 Protection degree: EMERGENCY Type: YELLOW/RED Colour: 20A Rated current: 2P Poles: Y1 Switch size: 105x150x82mm Dimensions:

Packaging
Carton Description: 12 Quantity: 8001636644219 EAN code: 11.844 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions: Box Description: 1 Quantity: 8001636644202 EAN code: 0.987 KG Gross weight: 2121.168 CCM Volume: 107X168X118 (MM) Dimensions:

Note:

Handle padlockable in OFF only (3 padlocks)

Equipped with door interlock

Open threaded cable entry with cap / cable sleeve

Approvals and Certifications

View certificate

Standards and Laws

	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-1 (2007) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-1/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units

Annexed
