899.IN25087

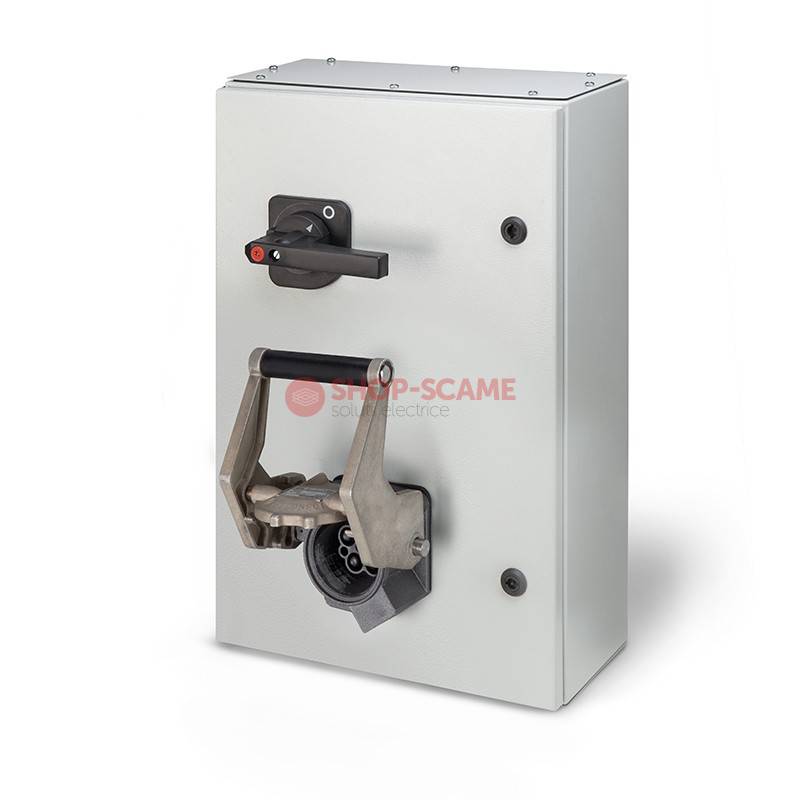

INTERLOCK.SOCKET 3P+N+E IP65 250A 690V SCAME 899.IN25087

Cod EAN: 8001636315508

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 12520.50 Lei / 1

Pret cu TVA: 15149.81 Lei / 1

Inainte »»

Master data
1NR Minimum order: 21.2KG Net Weight: 8001636315508 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA-METAL Series Commercial series: INTERLOCKED SOCKET Synthetical description: 250A Rated current: 3P+N+E Poles: 690V Rated voltage: IP65 Protection degree:

Packaging
Carton Description: 1 Quantity: EAN code: 23.8 KG Gross weight: 149688 CCM Volume: 420X540X660 (MM) Dimensions:

Note:

To be mated with HDAL250 plugs

OPTIMA-METAL Series
Application example

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60947-3 (2006) View certificate
[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60947-3/A1 (2011) View certificate
[European Standard] Low-voltage switchgear and controlgear Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements

Annexed
