» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

405.32877

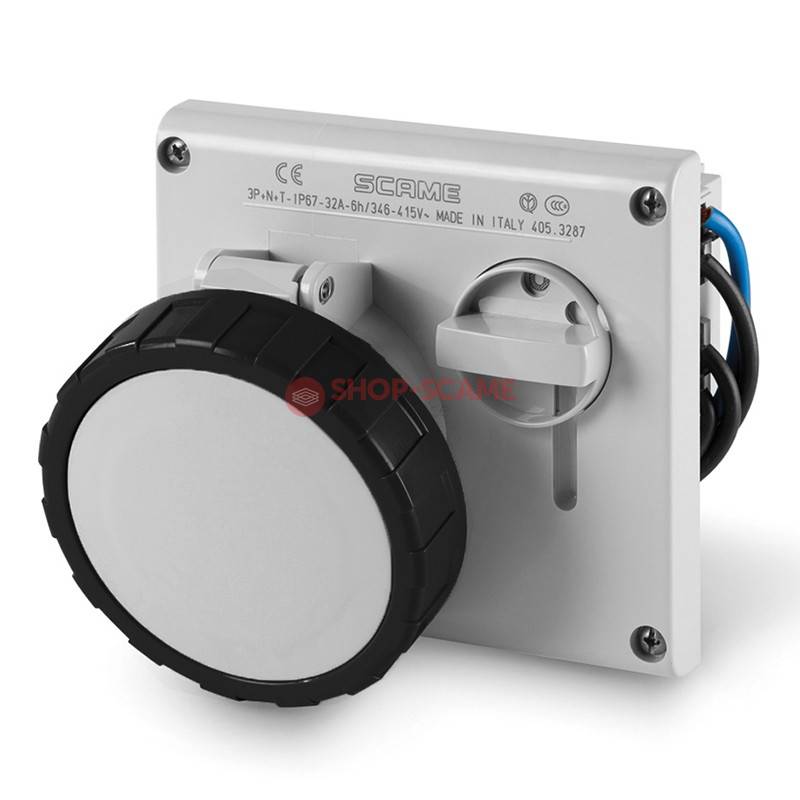

INTERLOCKED SOCKET 3P+N+E IP67 32A 5h SCAME 405.32877

Cod EAN: 8001636050607

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 423.65 Lei / 1

Pret cu TVA: 512.62 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.597KG Net Weight: 8001636050607 EAN code: 85366990 INTRASTAT code:

TechData
OMNIA Series Commercial series: INTERLOCKED SOCKET Synthetical description: 32A Rated current: 3P+N+E Poles: 5h Hour position: 600-690V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: BLACK Colour: IP66/IP67 Protection degree: 136X125MM Flange:

Packaging
Carton Description: 6 Quantity: 8001636920863 EAN code: 4.098 KG Gross weight: 18427.5 CCM Volume: 315X390X150 (MM) Dimensions:

Note:

Pay special attention when selecting the appropriate fuse with respect to the tension of the installation.

Supplied with stainless steel fixing screws.

Approvals and Certifications

View certificate

Standards and Laws

	CEI EN 60309-1 (1992) View certificate
[Italian Standard] Plugs, socket-outlets and couplers for industrial purposes - Part 1: General requirements
	CEI EN 60309-2 (1992) View certificate
[Italian Standard] Plugs, socket-outlets and couplers for industrial purposes - Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories

Annexed
