561.3272

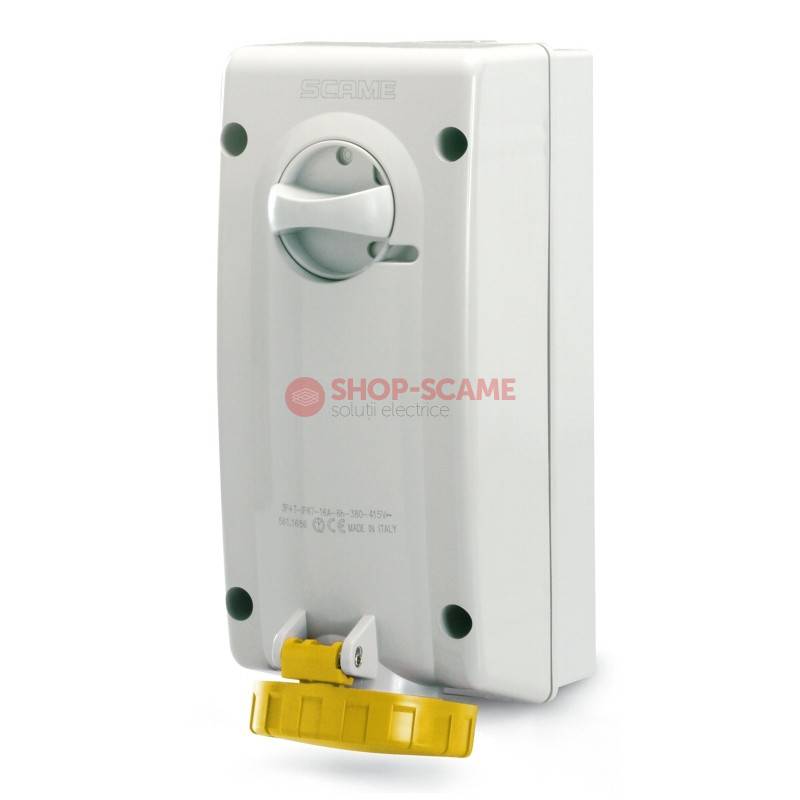

INTERLOCKED SOCKET 3P+E IP67 32A 4h SCAME 561.3272

Cod EAN: 8001636154749

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 368.08 Lei / 1

Pret cu TVA: 445.38 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.917KG Net Weight: 8001636154749 EAN code: 85366990 INTRASTAT code:

TechData
ADVANCE 2 Series Commercial series: INTERLOCKED SOCKET Synthetical description: 32A Rated current: 3P+E Poles: 4h Hour position: 100-130V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: YELLOW Colour: IP66/IP67 Protection degree: 106X240MM Flange: M25X1,5 Cable outlet:

Packaging
Carton Description: 12 Quantity: 8001636587011 EAN code: 13.344 KG Gross weight: 70840 CCM Volume: 280X440X575 (MM) Dimensions: Box Description: 1 Quantity: 8001636587004 EAN code: 1.112 KG Gross weight: 4743.75 CCM Volume: 115X275X150 (MM) Dimensions:

Note:

Open threaded cable entry

Cable gland included

Threaded cap/cable sleeve included

Supplied with stainless steel fixing screws.

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
