745.5009-361

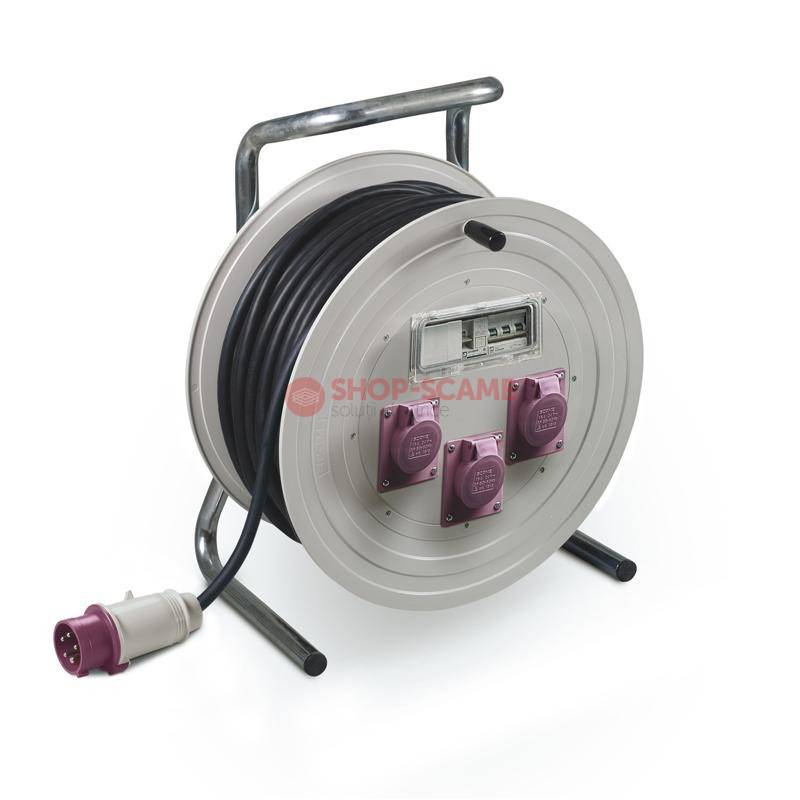

INDUSTRIAL CABLE REEL IP44 50 mt SCAME 745.5009-361

Cod EAN: 8001636043852

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 6221.59 Lei / 1

Pret cu TVA: 7528.12 Lei / 1

Inainte »»

INDUSTRIAL CABLE REEL IP44 50 mt SCAME 745.5009-361

Master data
1NR Minimum order: 19.02KG Net Weight: 8001636043852 EAN code: 85444995 INTRASTAT code:

TechData
ROLLER 450 Series Commercial series: INDUSTRIAL CABLE REEL Synthetical description: IP44 Protection degree: Plug IEC 309 2P+E 16A Inlet supply unit: 3 No. of available outlets: 3 No. of sockets 24V: 50m Cable length: 1mm² Cable section: 600W Unwound cable power:

Packaging
Carton Description: 1 Quantity: 8001636925189 EAN code: 20.42 KG Gross weight: 100188 CCM Volume: 360X460X605 (MM) Dimensions:

Note:

Incoming unit:
Protection provided by a 2P 6 A MCB characteristic D.
Safety transformer 220/24V~ - SELV
600 VA (class F) toroidal transformer - SELV
Outgoing unit:
Protection provided by a 2P 25 A MCB.

Cable reels with protection devices and 250/24V~ transformer unit - SELV - IP44:
Portable steel-tube stand.
Cable rewind knob
Dia. 450-mm drum with window for 4 DIN modules.
Equipped with protection devices.

Approvals and Certifications

View certificate

Standards and Laws

Annexed

	Technical drawing [DWG] 820.12 KB
	Technical drawing [PDF] 373.97 KB
	Technical drawing [STP] 238.82 KB
