» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

413.1667-SF

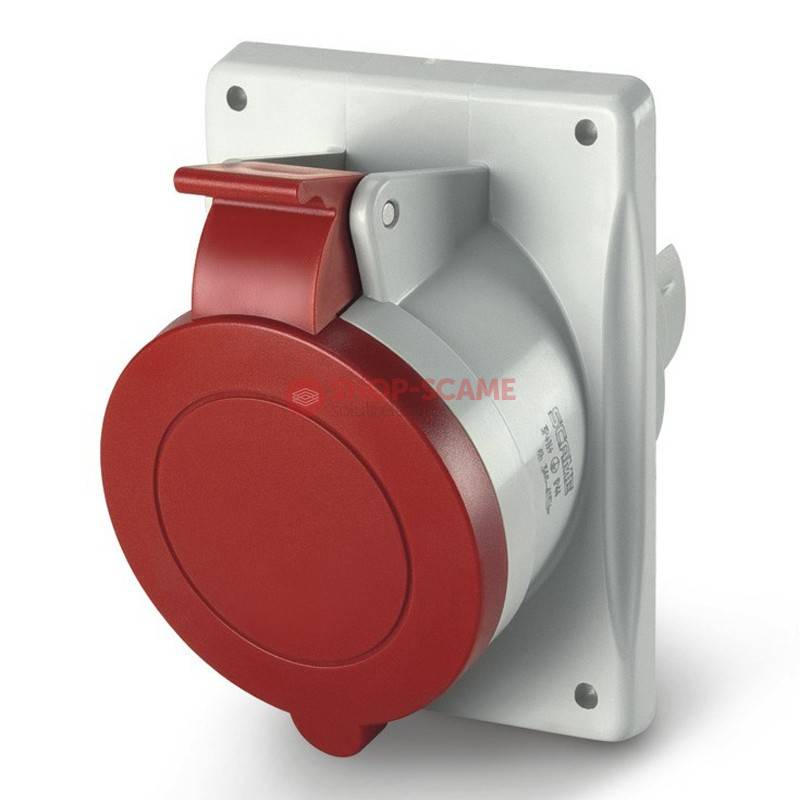

FLUSH-MOUNTING SOCKET 3P+N+E IP44 16A 6h SCAME 413.1667-SF

Cod EAN: 8001636252315

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 39.18 Lei / 1

Pret cu TVA: 47.41 Lei / 1

«« Inapoi

Inainte »»

Master data
50NR Minimum order: 0.155KG Net Weight: 8001636252315 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: FLUSH-MOUNTING SOCKET Synthetical description: 16A Rated current: 3P+N+E Poles: 6h Hour position: 346-415V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: RED Colour: IP44/IP54 Protection degree: ANGLED Types of available outlets: Screw terminals Terminals: 70X87MM Flange:

Packaging
Carton Description: 50 Quantity: 8001636700168 EAN code: 8.3 KG Gross weight: 31416 CCM Volume: 340X385X240 (MM) Dimensions:

Note:

Bulk pack

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
