675.4024B

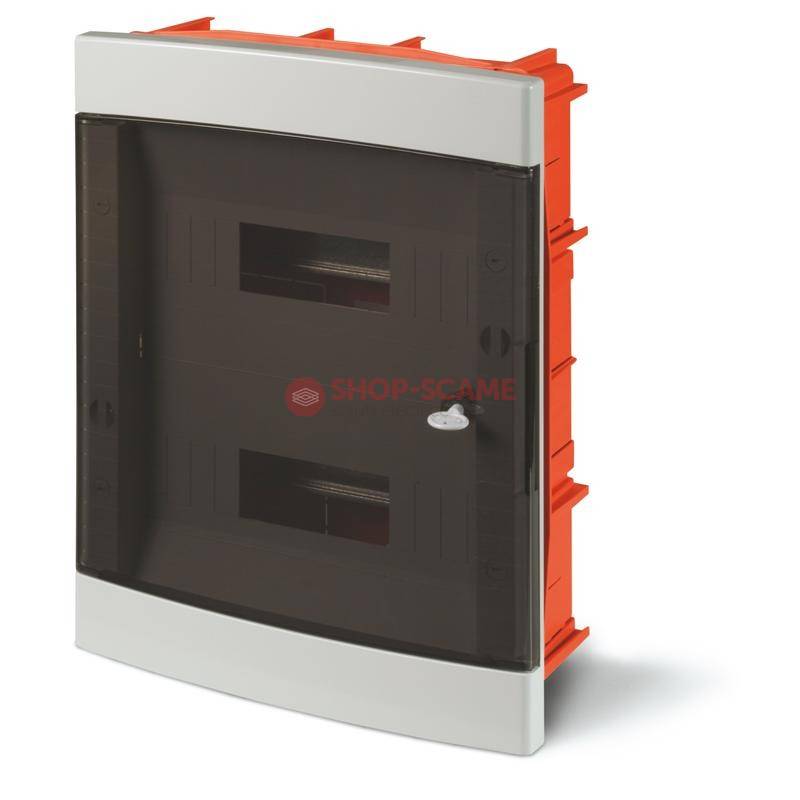

FLUSH MOUNTING CONSUMER UNIT 24 DIN MOD. SCAME 675.4024B

Cod EAN: 8001636077918

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 158.01 Lei / 1

Pret cu TVA: 191.19 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 1.731KG Net Weight: 8001636077918 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP40 Series [flush] Commercial series: CONSUMER UNIT Synthetical description: WHITE Colour: FLUSH MOUNTING Mounting version: IP40 Protection degree: 24 DIN Modularity: 24+4 MOD. No. modules: 420x326x95mm Dimensions: 52W Dissipable power: (74W*) Dissipable power:

Packaging
Carton Description: 5 Quantity: 8001636878126 EAN code: 9.95 KG Gross weight: 109200 CCM Volume: 390X560X500 (MM) Dimensions: Bag Description: 1 Quantity: 8001636878133 EAN code: 1.99 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.

Annexed
