» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

418.3260

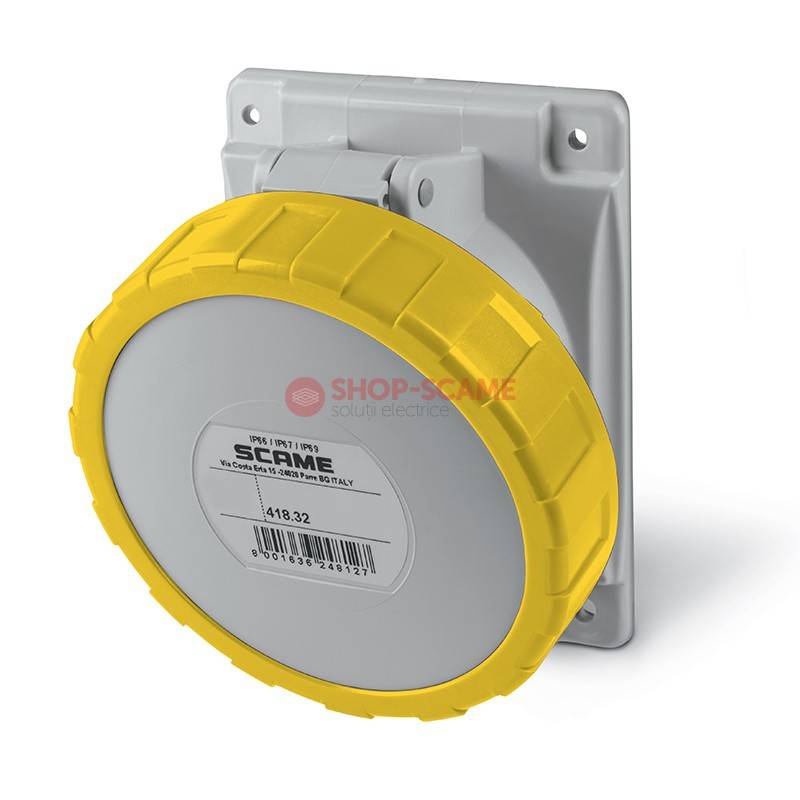

FLUSH-MNT. SOCKET 2P+E IP66/IP67 32A 4h SCAME 418.3260

Cod EAN: 8001636248066

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 78.64 Lei / 1

Pret cu TVA: 95.15 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.234KG Net Weight: 8001636248066 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: FLUSH-MOUNTING SOCKET Synthetical description: 32A Rated current: 2P+E Poles: 4h Hour position: 100-130V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: YELLOW Colour: IP66/IP67/IP69 Protection degree: ANGLED Types of available outlets: Screw terminals Terminals: 84X106MM Flange:

Packaging
Carton Description: 50 Quantity: 8001636696294 EAN code: 14.1 KG Gross weight: 109200 CCM Volume: 390X560X500 (MM) Dimensions: Box Description: 10 Quantity: 8001636696287 EAN code: 2.82 KG Gross weight: 14857.92 CCM Volume: 268X308X180 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
