» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

672.4216

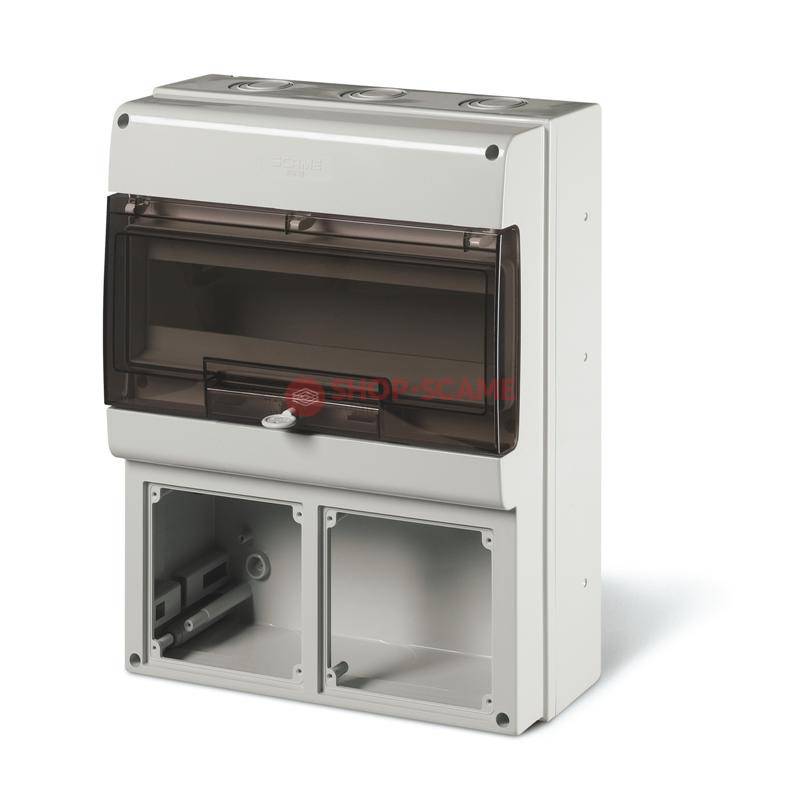

ENCLOSURE WITH 2 OMNIA SERIES CUTOUTS SCAME 672.4216

Cod EAN: 8001636051567

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 300.22 Lei / 1

Pret cu TVA: 363.27 Lei / 1

Inainte »»

Master data
1NR Minimum order: 2.308KG Net Weight: 8001636051567 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP66 Series [enclosure] Commercial series: MODULAR ENCLOSURE Synthetical description: GREY Colour: SURFACE MOUNTING Mounting version: IP66 Protection degree: M400 Modularity: 16 MOD. No. modules: 400x328x140mm Dimensions: 28W Dissipable power:

Packaging
Carton Description: 4 Quantity: 8001636919294 EAN code: 10.5 KG Gross weight: 88794.375 CCM Volume: 435X575X355 (MM) Dimensions: Bag Description: 1 Quantity: 8001636919300 EAN code: 2.625 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.
