» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

672.1200

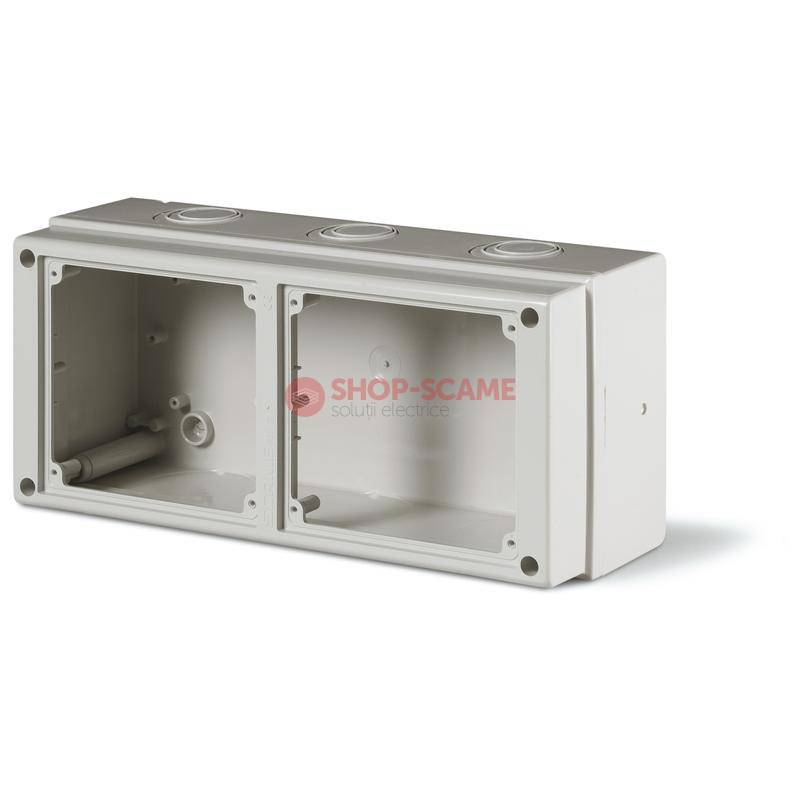

ENCLOSURE WITH 2 OMNIA SERIE CUTOUTS SCAME 672.1200

Cod EAN: 8001636051512

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 82.03 Lei / 1

Pret cu TVA: 99.26 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.778KG Net Weight: 8001636051512 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP66 Series [enclosure] Commercial series: MODULAR ENCLOSURE Synthetical description: GREY Colour: SURFACE MOUNTING Mounting version: IP66 Protection degree: M150 Modularity: 150x328x115mm Dimensions: 20W Dissipable power:

Packaging
Carton Description: 6 Quantity: 8001636919393 EAN code: 5.352 KG Gross weight: 40257 CCM Volume: 315X360X355 (MM) Dimensions: Bag Description: 1 Quantity: 8001636919409 EAN code: 0.892 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.
	CEI 23-48 (1998) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali

Annexed
