» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

654.0362

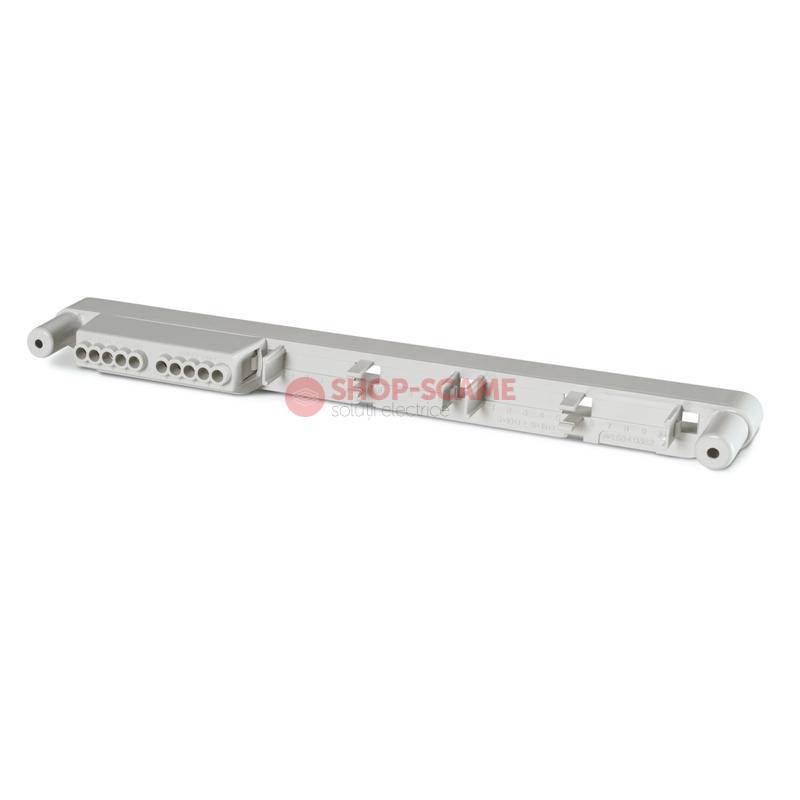

EARTH/NEUTRAL IP20 TERMINAL BLOCK SCAME 654.0362

Cod EAN: 8001636081328

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 30.60 Lei / 1

Pret cu TVA: 37.03 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.076KG Net Weight: 8001636081328 EAN code: 85369010 INTRASTAT code:

TechData
TERMINAL BLOCK Synthetical description: DOMINO IP40 12-24 DIN Suitable for: DOMINO IP40 18-36-54-72 DIN Suitable for: DOMINO IP66 16-32-48-64 DIN Suitable for: GREY Colour: IP20 Protection degree:

Packaging
Bag Description: 1 Quantity: 8001636873091 EAN code: 0.086 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Box Description: 10 Quantity: 8001636873084 EAN code: 0.86 KG Gross weight: 5117.07 CCM Volume: 118X295X147 (MM) Dimensions:

Note:

Insulated by a plastic cover for the connection of the flexible cables

For earth, phase and neutral conductors

There is special left for two additional terminal blocks

Approvals and Certifications

View certificate

Standards and Laws

	CEI EN 60998-2-1 (1993) View certificate
[Italian Standard] Connecting devices for low voltage circuits for household and similar purposesConnecting devices for low voltage circuits for household and similar purposes Part 2-1: Particular requirements for connecting devices as separate entities
	CEI EN 60998-1 (1993) View certificate
[Italian Standard] Connecting devices for low-voltage circuits for household and similar purposes Part 1: General requirements

Annexed
