» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

671.6540-741

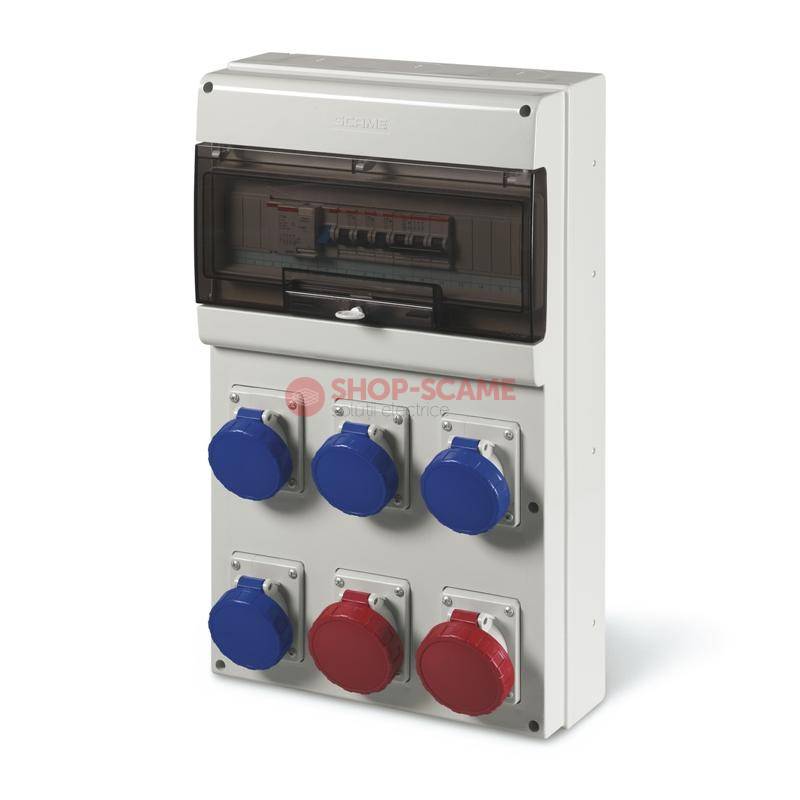

DISTRIBUTION ASSEMBLY (ACS) SCAME 671.6540-741

Cod EAN: 8001636220895

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 2490.75 Lei / 1

Pret cu TVA: 3013.81 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 6.25KG Net Weight: 8001636220895 EAN code: 85371098 INTRASTAT code:

TechData
DOMINO IP66 Series [assembly] Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP44 Protection degree: Supply by terminal block Inlet supply unit: 4 No. of available outlets: 1 No. of sockets 2P+E 16A: 3 No. of sockets 3P+E 16A: Not applicable In disp. ing/tipo apparecchio: 9 KW Max power: 1 No. MCB 1P 16A: 3 No. MCB 3P 16A:

Packaging
Carton Description: 1 Quantity: EAN code: 6.9 KG Gross weight: 40443 CCM Volume: 340X610X195 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-3 (2012-04)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 3: Distribution boards intended to be operated by ordinary persons (DBO)

Annexed

Wiring diagram 41.85 KB
