Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.
671.2012-015

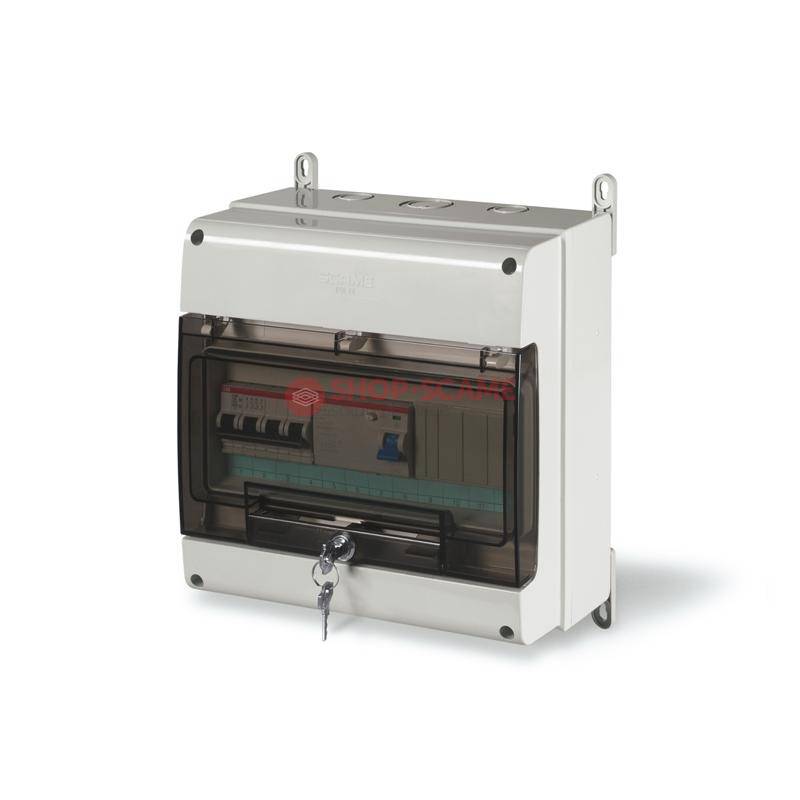

DISTRIBUTION ASSEMBLY (ACS) SCAME 671.2012-015
Cod EAN: 8001636193441
Marca: Scame
Cantitate minima: 1
Pret fara TVA: 1442.90 Lei / 1
Pret cu TVA: 1745.91 Lei / 1
DISTRIBUTION ASSEMBLY (ACS) SCAME 671.2012-015
1NR
Minimum order:
2.414KG
Net Weight:
8001636193441
EAN code:
85371098
INTRASTAT code:
Commercial series:
DISTRIBUTION ASSEMBLY (ACS)
Synthetical description:
IP66
Protection degree:
Direct supply to main switch
Inlet supply unit:
MCB 4P 32A
In disp. ing/tipo apparecchio:
RCD 4P 40A 0,3A SEL Type A
In disp. ing/tipo apparecchio:
18 KW
Max power:
Carton
Description:
1
Quantity:
8001636649702
EAN code:
2.832 KG
Gross weight:
15840 CCM
Volume:
275X320X180 (MM)
Dimensions:
EN 61439-4 (2013-03)
View certificate
[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)
