661.5160-160

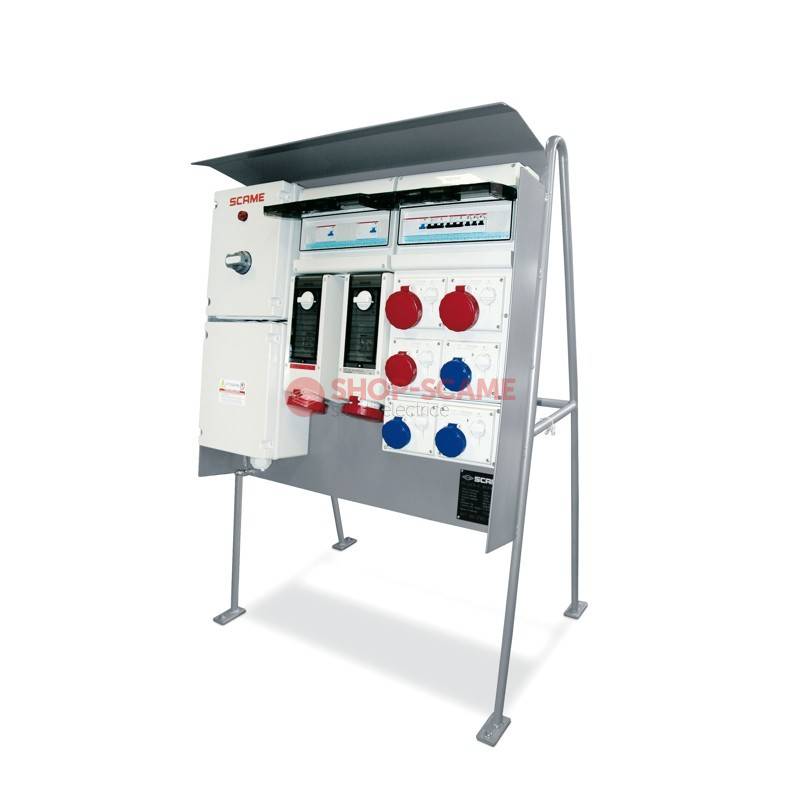

DISTRIBUTION ASSEMBLY (ACS) SCAME 661.5160-160

Cod EAN: 8001636215099

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 35301.40 Lei / 1

Pret cu TVA: 42714.69 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 73KG Net Weight: 8001636215099 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 7 No. of available outlets: 1 No. of sockets 2P+E 16A: 2 No. of sockets 3P+N+E 16A: 1 No. of sockets 3P+N+E 32A: 3 No. of sockets 3P+N+E 63A: MCB 4P 160A In disp. ing/tipo apparecchio: 90 KW Max power: 1 No. RCD 4P 40A 0,03A: 4 No. RCD 4P 63A 0,03A:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 83.68 KB
