661.5100-056

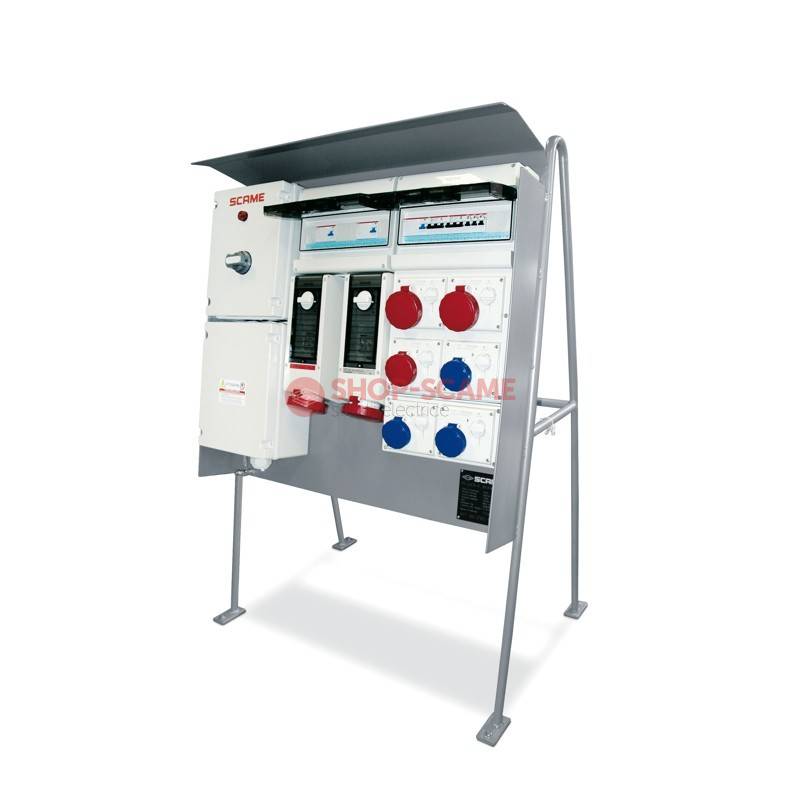

DISTRIBUTION ASSEMBLY (ACS) SCAME 661.5100-056

Cod EAN: 8001636194745

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 32180.10 Lei / 1

Pret cu TVA: 38937.92 Lei / 1

Inainte »»

Master data
1NR Minimum order: 76KG Net Weight: 8001636194745 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 4 No. of available outlets: 1 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: 1 No. of sockets 3P+E 32A: 1 No. of sockets 3P+E 63A: MCB 3P 100A In disp. ing/tipo apparecchio: 55 KW Max power: 1 No. MCB 2P 8A: 1 No. MCB 3P 16A: 1 No. MCB 3P 32A: 1 No. MCB 3P 63A:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 61.49 KB
	Instruction manual 413.55 KB
