» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

661.0400-165

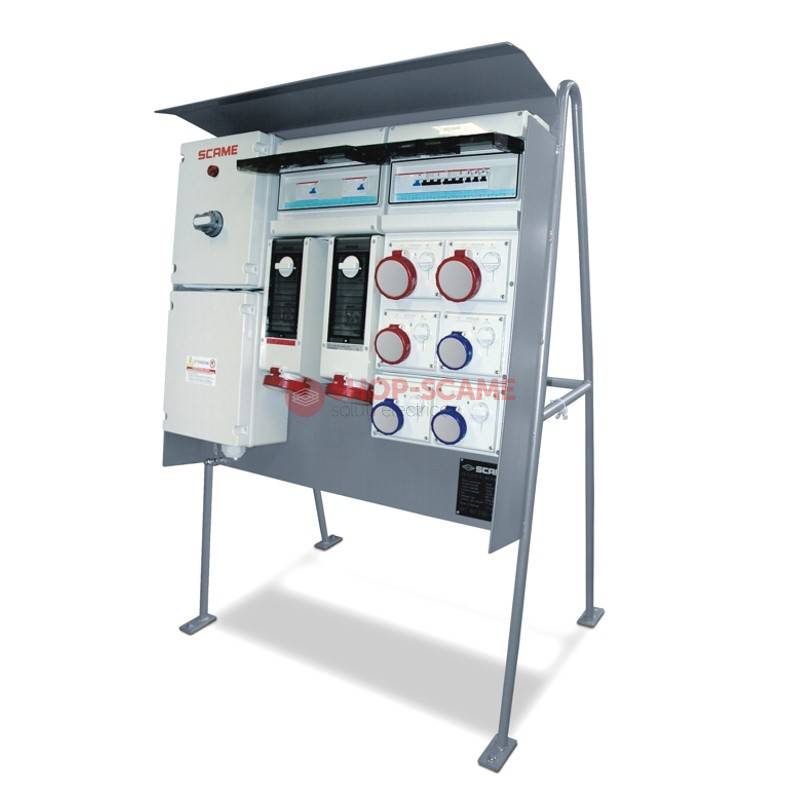

DISTRIBUTION ASSEMBLY (ACS) SCAME 661.0400-165

Cod EAN: 8001636217574

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 51145.90 Lei / 1

Pret cu TVA: 61886.54 Lei / 1

Inainte »»

Master data
1NR Minimum order: 114KG Net Weight: 8001636217574 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: With terminal block I/O Inlet supply unit: 4 No. of available outlets: 4 No. outlet w/ switch 3P+N 63A: Disconnecting switch 4P 400A In disp. ing/tipo apparecchio: 130 KW Max power:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 46.99 KB
