661.0100-098

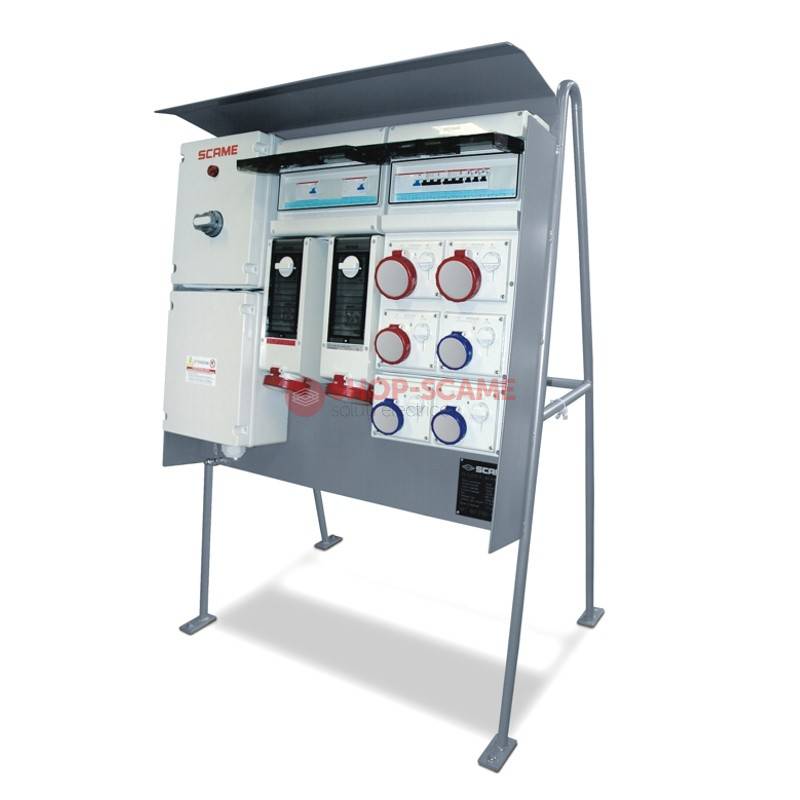

DISTRIBUTION ASSEMBLY (ACS) SCAME 661.0100-098

Cod EAN: 8001636176857

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 60.36 Lei / 1

Pret cu TVA: 73.04 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 138.4KG Net Weight: 8001636176857 EAN code: 85371098 INTRASTAT code:

TechData
MEGA Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP55 Protection degree: With terminal block I/O Inlet supply unit: 4 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+N+E 32A: 7 No. outlet w/ switch 3P+N 32A: 1 No. outlet w/ switch 3P+N 63A: RCBO 4P 100A 0,03A In disp. ing/tipo apparecchio: 55 KW Max power: 1 No. MCB 1P 16A: 1 No. MCB 3P 32A:

Packaging
Case Description: 1 Quantity: 8001636623917 EAN code: 237.4 KG Gross weight: 4.053 M3 Volume: 1102X2010X1830 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 73.01 KB
