» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

658.8156-138

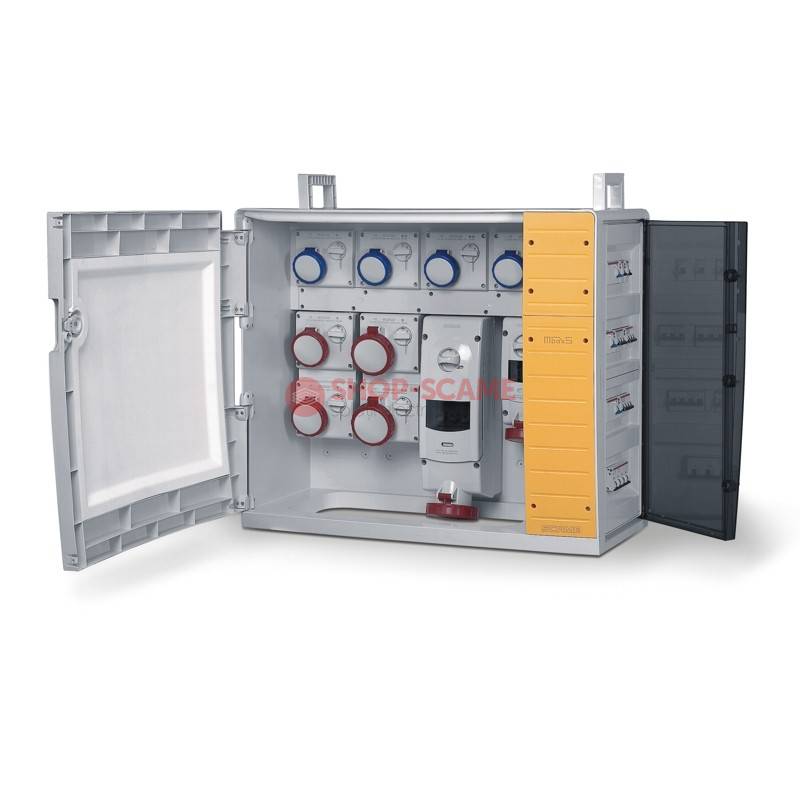

DISTRIBUTION ASSEMBLY (ACS) SCAME 658.8156-138

Cod EAN: 8001636214153

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 9910.28 Lei / 1

Pret cu TVA: 11991.44 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 29.6KG Net Weight: 8001636214153 EAN code: 85371098 INTRASTAT code:

TechData
MBOX5 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Appliance inlet Inlet supply unit: 6 No. of available outlets: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: 1 No. of sockets 3P+N+E 16A: 1 No. of sockets 3P+N+E 32A: 1 No. of sockets 3P+N+E 63A: RCBO 4P 100A 0,03A In disp. ing/tipo apparecchio: 55 KW Max power: 2 No. MCB 1P 16A: 2 No. MCB 3P 16A: 1 No. MCB 3P 32A: 1 No. MCB 3P 63A:

Packaging
Carton Description: 1 Quantity: EAN code: 32.4 KG Gross weight: 346104 CCM Volume: 460X990X760 (MM) Dimensions:

Note:

Appliance inlet IEC309 125A 3P+N+E

With door

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 56.73 KB
	Instruction manual 407.36 KB
