Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

658.6954-768

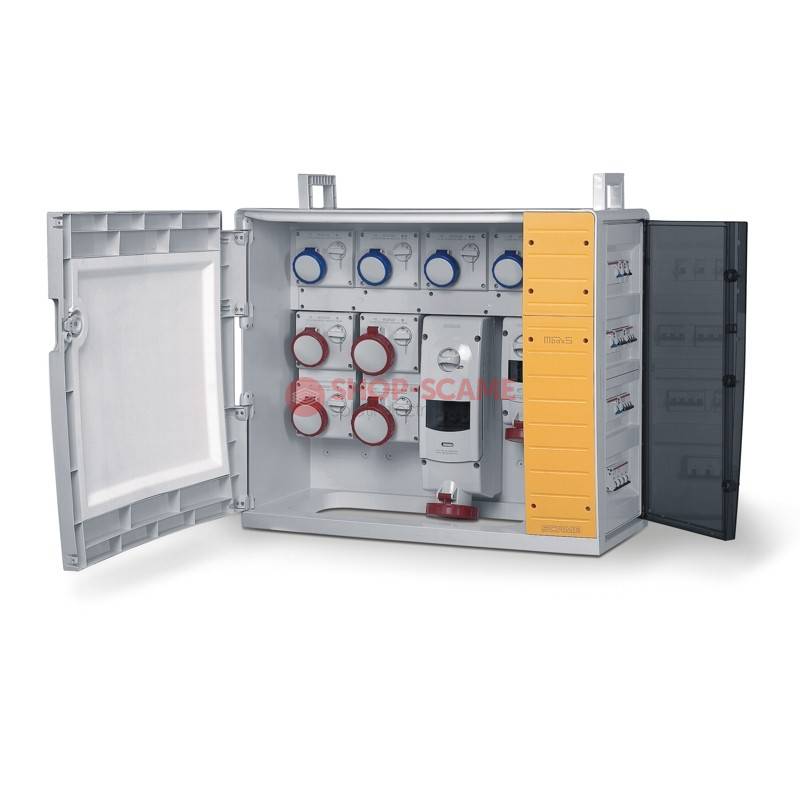

DISTRIBUTION ASSEMBLY (ACS) SCAME 658.6954-768

Cod EAN: 8001636218489

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 7771.55 Lei / 1

Pret cu TVA: 9403.58 Lei / 1

Inainte »»

Master data
1NR Minimum order: 24.92KG Net Weight: 8001636218489 EAN code: 85371098 INTRASTAT code:

TechData
MBOX5 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Supply by terminal block Inlet supply unit: 4 No. of available outlets: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+N+E 32A: 1 No. of sockets 3P+N+E 63A: MCB 4P 63A In disp. ing/tipo apparecchio: RCD 4P 63A 0,03A In disp. ing/tipo apparecchio: 35 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 27.72 KG Gross weight: 300656 CCM Volume: 460X860X760 (MM) Dimensions:

Note:

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 55.1 KB
	Instruction manual 407.36 KB
