658.6856-064

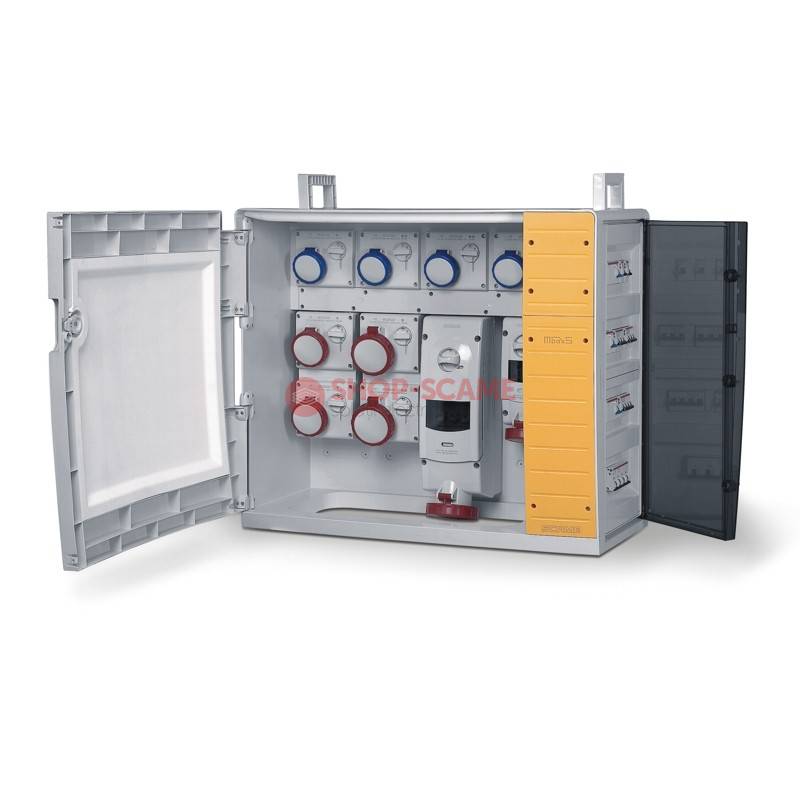

DISTRIBUTION ASSEMBLY (ACS) SCAME 658.6856-064

Cod EAN: 8001636213576

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 8386.73 Lei / 1

Pret cu TVA: 10147.94 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 28KG Net Weight: 8001636213576 EAN code: 85371098 INTRASTAT code:

TechData
MBOX5 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Appliance inlet Inlet supply unit: 6 No. of available outlets: MCB 4P 63A In disp. ing/tipo apparecchio: RCD 4P 63A 0,03A In disp. ing/tipo apparecchio: 35 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 31 KG Gross weight: 346104 CCM Volume: 460X990X760 (MM) Dimensions:

Note:

Plug IEC309 63A 3P+N+E

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 64.2 KB
	Instruction manual 407.36 KB
