658.6058-173

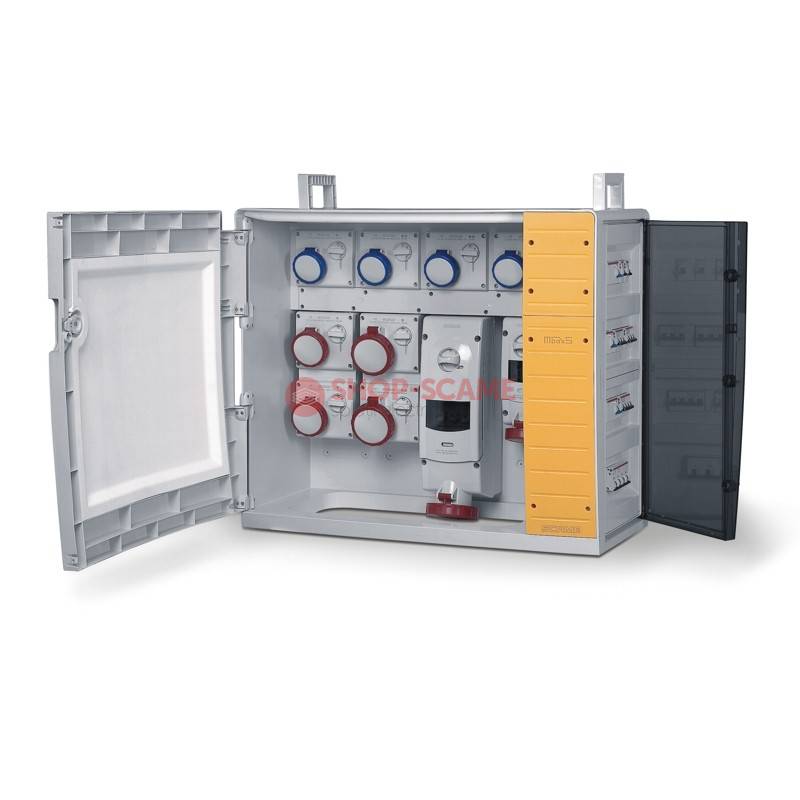

DISTRIBUTION ASSEMBLY (ACS) SCAME 658.6058-173

Cod EAN: 8001636213347

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 10982.10 Lei / 1

Pret cu TVA: 13288.34 Lei / 1

Inainte »»

Master data
1NR Minimum order: 30.17KG Net Weight: 8001636213347 EAN code: 85371098 INTRASTAT code:

TechData
MBOX5 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Supply by terminal block Inlet supply unit: 8 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 16A: 2 No. of sockets 3P+E 32A: 1 No. of sockets 3P+N+E 32A: 1 No. of sockets 3P+E 63A: MCB 4P 100A In disp. ing/tipo apparecchio: 55 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 32.97 KG Gross weight: 300656 CCM Volume: 460X860X760 (MM) Dimensions:

Note:

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 106.68 KB
	Instruction manual 407.36 KB
