657.6835-181

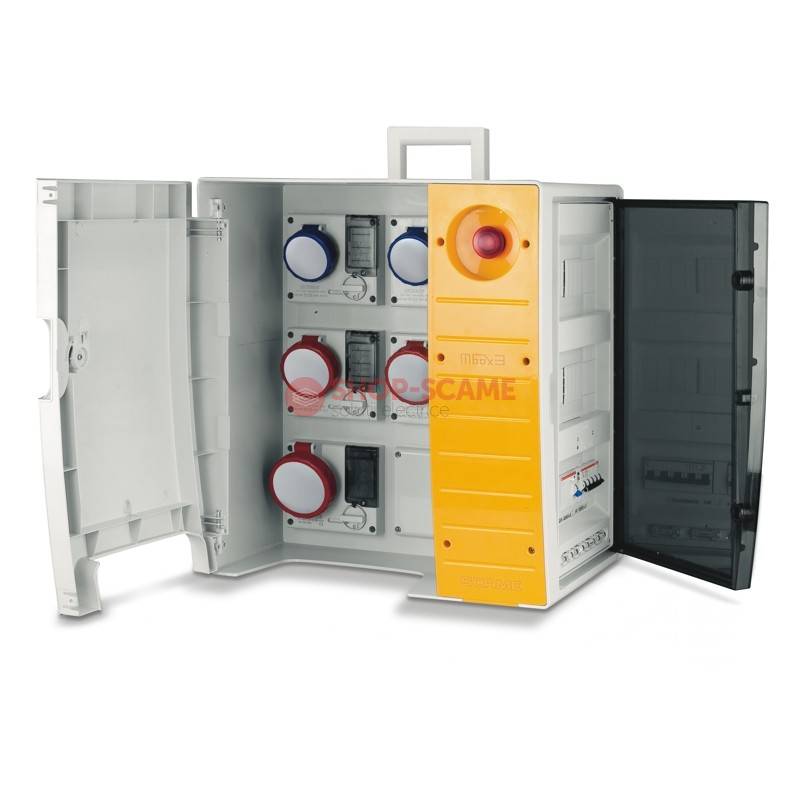

DISTRIBUTION ASSEMBLY (ACS) SCAME 657.6835-181

Cod EAN: 8001636204819

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 5320.41 Lei / 1

Pret cu TVA: 6437.70 Lei / 1

Inainte »»

Master data
1NR Minimum order: 15.85KG Net Weight: 8001636204819 EAN code: 85371098 INTRASTAT code:

TechData
MBOX3 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Appliance inlet Inlet supply unit: 5 No. of available outlets: 2 No. of sockets 2P+E 16A: 2 No. of sockets 3P+E 16A: 1 No. of sockets 3P+E 32A: MCB 4P 32A In disp. ing/tipo apparecchio: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 17.8 KG Gross weight: 172878.75 CCM Volume: 450X635X605 (MM) Dimensions:

Note:

Appliance inlet IEC309 32A 3P+N+E

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed
