» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

657.6035-050

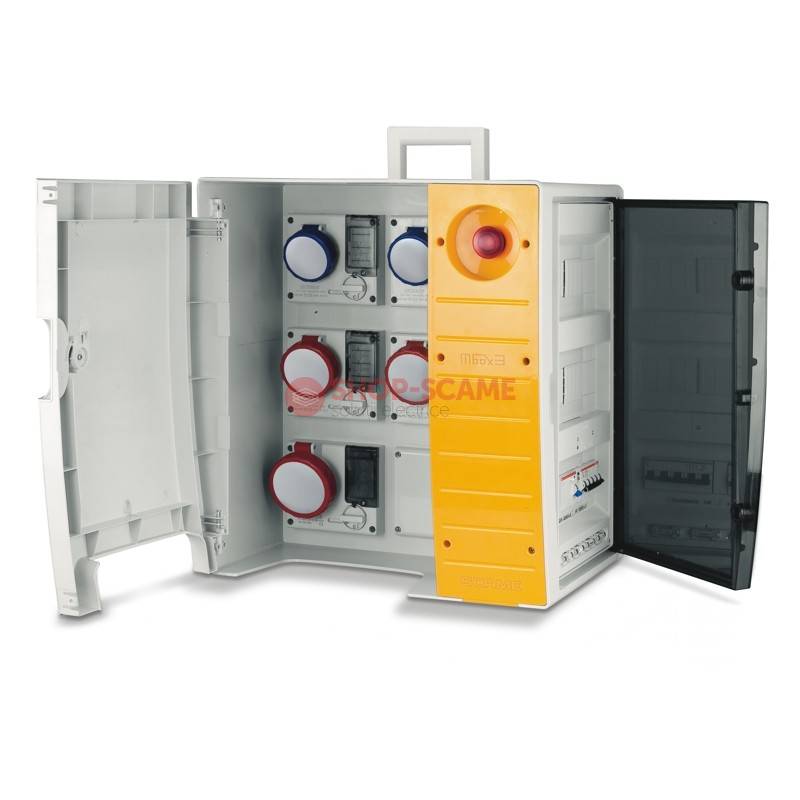

DISTRIBUTION ASSEMBLY (ACS) SCAME 657.6035-050

Cod EAN: 8001636206110

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 5632.81 Lei / 1

Pret cu TVA: 6815.70 Lei / 1

Inainte »»

Master data
1NR Minimum order: 16.6KG Net Weight: 8001636206110 EAN code: 85371098 INTRASTAT code:

TechData
MBOX3 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Supply by terminal block Inlet supply unit: 5 No. of available outlets: 1 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: 3 No. of sockets 3P+N+E 32A: MCB 4P 63A In disp. ing/tipo apparecchio: RCD 4P 63A 0,03A In disp. ing/tipo apparecchio: 35 KW Max power:

Packaging
Carton Description: 1 Quantity: EAN code: 18.35 KG Gross weight: 147015 CCM Volume: 450X540X605 (MM) Dimensions:

Note:

With door

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 59.7 KB
	Instruction manual 407.36 KB
