» Tablouri de sigurante si accesorii ip40/ip66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

656.7924-995

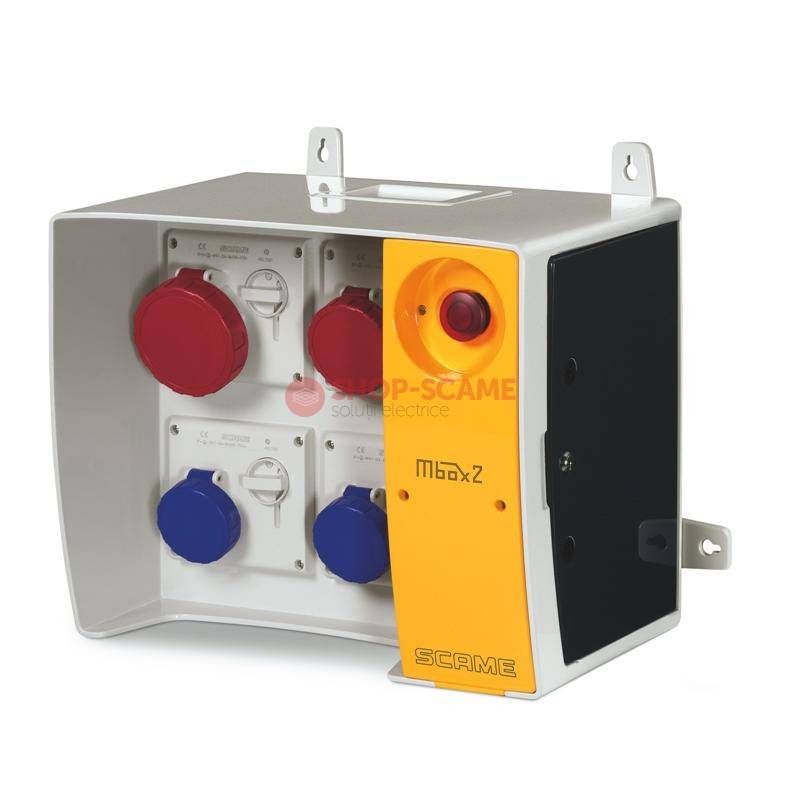

DISTRIBUTION ASSEMBLY (ACS) SCAME 656.7924-995

Cod EAN: 8001636234403

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3018.26 Lei / 1

Pret cu TVA: 3652.09 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 9.1KG Net Weight: 8001636234403 EAN code: 85371098 INTRASTAT code:

TechData
MBOX2 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Supply by terminal block Inlet supply unit: 4 No. of available outlets: 1 No. int.sw.sock.Plurist: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: MCB 4P 32A In disp. ing/tipo apparecchio: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 3 No. MCB 1P 16A: 1 No. MCB 3P 16A:

Packaging
Carton Description: 1 Quantity: EAN code: 9.9 KG Gross weight: 54816.125 CCM Volume: 305X455X395 (MM) Dimensions:

Note:

With OMNIAPLUS IP56

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

	Wiring diagram 57.56 KB
	Instruction manual 407.36 KB
