656.7824-611

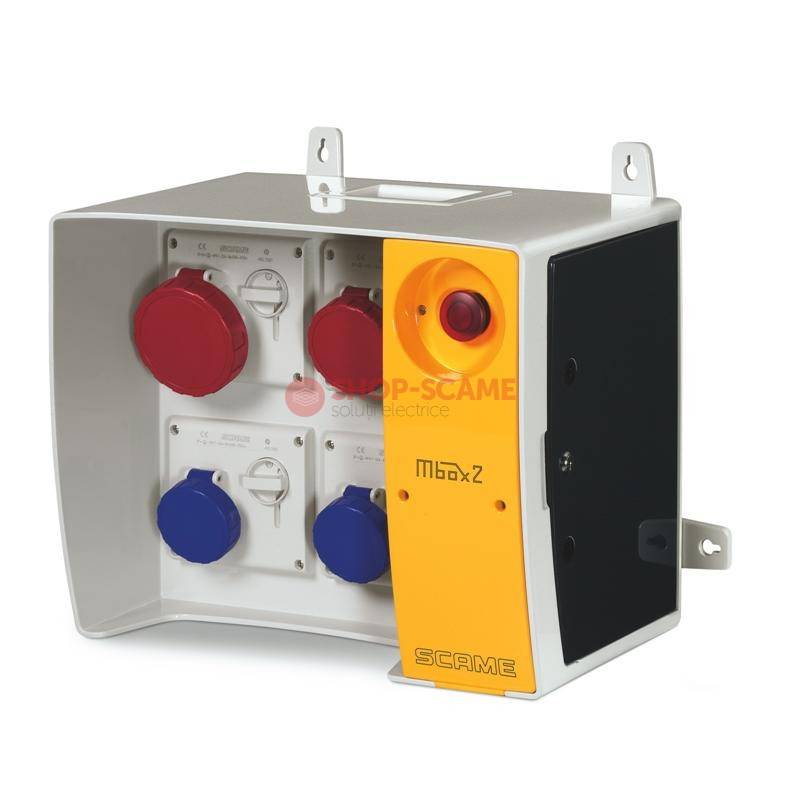

DISTRIBUTION ASSEMBLY (ACS) SCAME 656.7824-611

Cod EAN: 8001636196749

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3172.06 Lei / 1

Pret cu TVA: 3838.19 Lei / 1

Inainte »»

Master data
1NR Minimum order: 9.95KG Net Weight: 8001636196749 EAN code: 85371098 INTRASTAT code:

TechData
MBOX2 Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP65 Protection degree: Plug Inlet supply unit: 4 No. of available outlets: 2 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 32A: 1 No. of sockets 3P+N+E 32A: MCB 4P 32A In disp. ing/tipo apparecchio: RCD 4P 40A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 2 No. MCB 1P 16A:

Packaging
Carton Description: 1 Quantity: EAN code: 10.85 KG Gross weight: 62903.75 CCM Volume: 350X455X395 (MM) Dimensions:

Note:

Plug IEC309 32A 3P+N+E

2m rubber cable H07RN-F

Approvals and Certifications

I.M.Q.

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 52.13 KB
