» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

610.3666

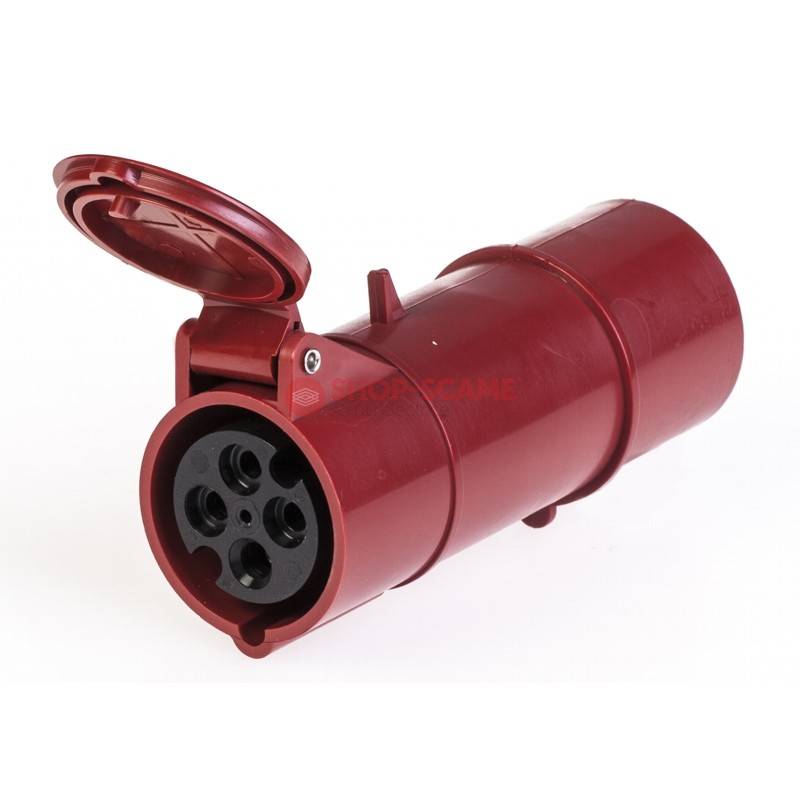

CURRENT ADAPTOR FROM 3P+E 32A TO 3P+E16A SCAME 610.3666

Cod EAN: 8001636015613

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 136.95 Lei / 1

Pret cu TVA: 165.71 Lei / 1

CURRENT ADAPTOR FROM 3P+E 32A TO 3P+E16A SCAME 610.3666

Master data
10NR Minimum order: 0.306KG Net Weight: 8001636015613 EAN code: 85366990 INTRASTAT code:

TechData
ADAPTO Series Commercial series: ONE-WAY ADAPTOR Synthetical description: IP44 Protection degree: Plug IEC 309 3P+E 32A Inlet supply unit: 16A Rated current: 3P+E Poles: 400V Rated voltage: 1 No. of sockets 3P+E 16A:

Packaging
Box Description: 10 Quantity: 8001636984414 EAN code: 3.24 KG Gross weight: 10120.855 CCM Volume: 223X313X145 (MM) Dimensions:

Note:

The adaptor’s 32A plug is first plugged into the 32A power supply socket and then the 16A plug of the load to be supplied is plugged into the adaptor’s 16A socket.

For temporary use only

Used to supply 16A loads with 3P+E plugs from 32A 3P+E power supply sockets.

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements

Annexed
