672.2002

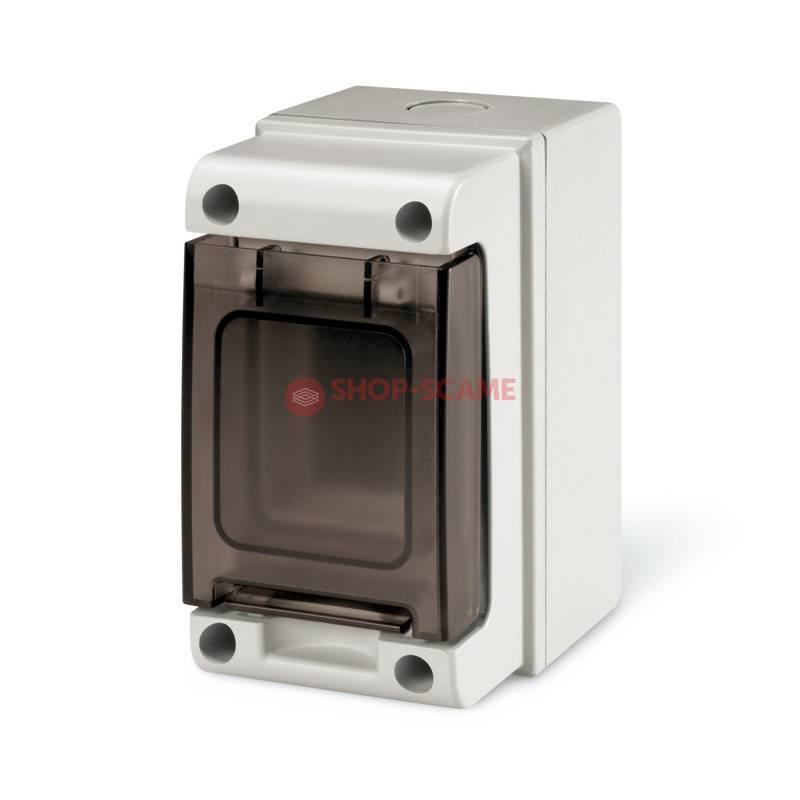

CONSUMER UNIT 2 DIN SCAME 672.2002

Cod EAN: 8001636179742

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 48.59 Lei / 1

Pret cu TVA: 58.79 Lei / 1

«« Inapoi

Inainte »»

Master data
1NR Minimum order: 0.258KG Net Weight: 8001636179742 EAN code: 85381000 INTRASTAT code:

TechData
DOMINO IP66 Series [enclosure] Commercial series: CONSUMER UNIT Synthetical description: GREY Colour: SURFACE MOUNTING Mounting version: IP66 Protection degree: M135 Modularity: 2 MOD. No. modules: 135x76x102mm Dimensions: 6W Dissipable power:

Packaging
Carton Description: 24 Quantity: 8001636626918 EAN code: 7.416 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions: Bag Description: 1 Quantity: 8001636626901 EAN code: 0.309 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Note:

Power dissipation calculated in conformity with CEI 23-49 italian standards

DOMINO IP66 Series
Modularity

Approvals and Certifications

I.M.Q.

Standards and Laws

	CEI 23-48 (1995) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare. Parte 1: Prescrizioni generali.
	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.
