» Tablouri incastrate pentru rigips si tencuiala

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

677.3036.2

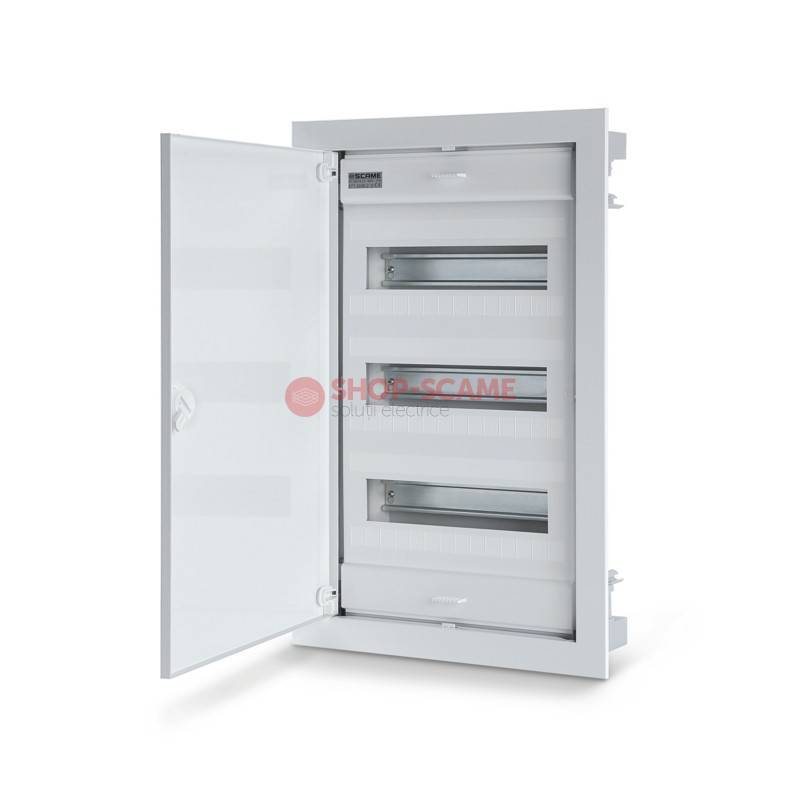

Cons. unit 36+6 DIN F.M. with N+PE term. SCAME 677.3036.2

Cod EAN: 8001636295558

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 263.04 Lei / 1

Pret cu TVA: 318.28 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 3.532KG Net Weight: 8001636295558 EAN code: 85381000 INTRASTAT code:

TechData
FLAT Series Commercial series: FLAT WALL FLUSH MTG CONS. UNIT Synthetical description: WHITE Colour: IP40 Protection degree: 36+6 MOD. No. modules: 568x368x90mm Dimensions: 54W Dissipable power:

Packaging
Carton Description: 1 Quantity: EAN code: 4.21 KG Gross weight: 25783 CCM Volume: 380X590X115 (MM) Dimensions:

Note:

FLAT Series
Terminal block 2x(2x16mm² + 14x10mm²)

.2 = 2x terminal block 2x(2x16mm² + 14x10mm²)

Materials: Thermoplastic enclosure - Painted metal door

Approvals and Certifications

View certificate

Standards and Laws

	CEI 23-49 (1996) View certificate
[Italian Standard] Involucri per apparecchi per installazioni fisse per uso domestico e similare.
	EN 60670-1 (2005) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations. General requirements

Annexed
